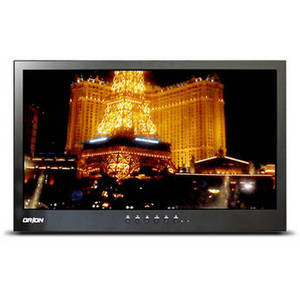

Premium Series 21" LED CCTV Monitor
 |
From Orion Images
Availability: Item is currently available.
10,942 Points
See more in Electronics
See more in Computers
Product Description
The Premium Wide Series 21" LED CCTV Monitor from ORION Images supports up to 1920 x 1080 video resolution at 60 Hz for displaying high-definition surveillance footage. The monitor features a 3D comb filter, deinterlacing, and noise reduction enhancements. Additional features include advanced auto power recovery, auto source sequencing, and a trigger sensor. Housed in an all metal chassis for durability, the monitor has a 100 x 100mm VESA pattern, providing compatibility with mounting brackets for easy installation. There are two 1W built-in speakers for audio, and there are multiple input and output connections, including BNC, S-Video, VGA, DVI-D, HDMI, RCA, and PC stereo.
| Display | |
| Screen Size | 21.5" (54.6 cm) |
| Maximum Resolution | 1920 x 1080 at 60 Hz |
| Screen Type | LED BLU |
| Pixel Pitch | 0.248 x 0.248 mm |
| Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle (H/V) | 170°/160° |
| Display Color | 16.7 million |
| Response Time | < 5 ms |
| Video System | NTSC / PAL |
| Frequency | H: 31 to 64 KHz V: 55 to 75 KHz |
| Interface | |
| Video | 2 x Input (BNC) 2 x Output (BNC) |
| S-Video | 1 x Input 1 x Output |
| VGA | 1 x Input (15-Pin D-Sub) |
| DVI-D | 1 x Input |
| HDMI | 2 x Input |
| Audio | 2 x Input (RCA Type: left and right) |
| PC Stereo In | 1 x Input |
| Transmitter | |
| Remote Control | Yes |
| Audio | |
| Built-In Speakers | 2 x 1 W |
| Features | |
| Filter Type | 3D comb filter, deinterlacing |
| Noise Reduction | Yes |
| Multi-Display Function | PIP / PBP |
| Auto Power Recover | Yes |
| Trigger Sensor | Yes (NO / NC) |
| Auto Source Sequencing | Yes |
| Languages | English, Spanish, French, German, Italian |
| Mount | |
| VESA Compatibility | 100 x 100 mm |
| Compatibility | Wall Mount: WB-5, WB-10, WB-30, WB-31 Ceiling Mount: CMK-01 |
| General | |
| Material | Electronic galvanized iron |
| Desktop Stand | Kick type |
| Power Consumption | < 38 W100 to 240 VAC (50 / 60 Hz) 12 VDC / 3.5 A |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Dimensions | 20.4 x 13.1 x 3.1" (51.8 x 33.3 x 7.9 cm) |
| Weight | 13.7 lb (6.2 kg) |
