19HSDI3G 19" LCD HD-SDI Monitor (Black)
 |
From Orion Images
Availability: Item is currently available.
15,955 Points
See more in Electronics
See more in Computers
Product Description

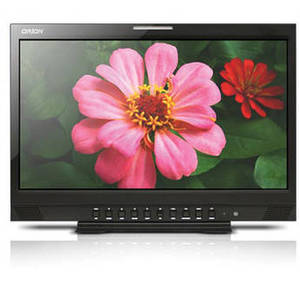

The black 19HSDI3G 19" LCD HD-SDI Monitor from ORION Images Corporation incorporates the panel and image processing technology to provide high contrast and an accurate scaler. This monitor supports SD/HD/3G SDI formats. In addition, it has composite, PC (VGA), component, DVI-D, and HDMI inputs.
| Screen Size | 18.5" (47.0 cm) |
| Resolution | 1366 x 768 @ 60 Hz (maximum) |
| Pixel Pitch | 0.300 x 0.300 mm |
| Brightness | 250 cd/m² |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Viewing Angle (H/V) | 178 / 178° |
| Display Color | 16.7 million |
| Response Time | <9 ms (gray to gray) |
| Video System | NTSC / PAL |
| Frequency | Horizontal: 60 to 75 kHz, Vertical: 55 to 75 kHz |
| Interface | SDI: 1 in /1 out SMPTE 125M : 525i (NTSC, 480i / 60) 1TU-R BT.601: 625i (PAL, 575i / 50) SMPTE 296M : 720p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) SMPTE 274M : 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98), 1080psF (30 / 29.97 / 25 / 24 / 23.98) SMPTE 425M: 1080p (60 / 59.94 / 50) Analog Composite: 1 in /1 out VGA (15Pin D-Sub): 1 in (15Pin D-Sub) Component: 1 in DVI-D / HDMI: 1 in /2 in Audio (RCA Type): 2 in (L + R) PC stereo : 1 in |
| Audio Communication | Built-in Speakers: 2 W x 2 |
| Power | Consumption: < On, <40W , Electrical Ratings: 100 to 240 VAC (50 / 60 Hz) |
| Temperature | Operating Temperature : 32 to 104°F (0 to 40°C), Storage Temperature : 4 to 140°F (-20 to 60°C) |
| Material | Metal |
| Dimensions | Outline Dimensions : 17.32 x 12.48 x 3.58" (439.90 x 316.90 x 90.90 mm) |
| Net Weight | 10.8 lb (4.9 kg) |
