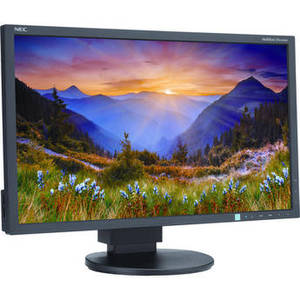

EA234WMI 23" LED Backlit LCD Monitor
![]() |
From NEC
Availability: Item is currently available.
6,845 Points
See more in Electronics
See more in Computers
Product Description
The EA234WMI 23" LED Backlit LCD Monitor from NEC is an LED-backlit desktop monitor ideal for corporate environments. Designed to enhance work performance, the widescreen monitor features IPS panel technology with wide viewing angles, 4-way ergonomic adjustability and 25000 : 1 dynamic contrast ratio. It delivers a completely redesigned chassis with a host of enhanced features, advanced technologies, future-proof connectivity and environmentally friendly benefits. The monitor boasts excellent color accuracy and minimal viewing angle shift. The LED backlighting of the monitor allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. The LED backlight technology not only reduces power by up to 52% compared to their predecessors, but also leads to a 30% thinner and 25% lighter chassis. The ControlSync technology allows users to control up to six EA234WMI displays in a multi-monitor configuration. The Smart Sensing technology automatically detects your work conditions and adjusts display brightness with ambient light and human sensors, while a comprehensive input panel, including HDMI, DisplayPort, DVI-D, VGA and 4-port USB hub, connects users to up-to-date peripherals and future-proofs your investment. Other green features include Eco Mode, a carbon footprint meter and an ambient light sensor that automatically adjusts the brightness to the optimal setting depending on ambient lighting, screen content or both, conserving power up to 87% compared to typical energy consumption. In addition, the human sensor detects user activity in front of the monitor and reduces display power up to 95% with inactivity.
| Display | |
| Size | 23" |
| Screen Area | |
| Panel Type | IPS-Type LCD |
| Curvature | |
| Touchscreen | No |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Pixels Per Inch (ppi) | 96 ppi |
| Maximum Brightness | 250 cd/m2 |
| Contrast Ratio | 1000:1 |
| Dynamic Contrast Ratio | 25,000:1 |
| Adaptive-Sync Technology | None |
| Pixel Clock Frequency | |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Look-Up Table | |
| Response Time | 6 ms |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Dot Pitch | 0.27 x 0.27 mm |
| Backlight Lifespan | |
| Inputs / Outputs | |
| Connectivity | 1 x DVI-D 1 x DisplayPort Input 1 x HDMI 1 x VGA |
| Webcam | |
| Built-In Mic | |
| Memory Card Slots | |
| Supported Languages | |
| Power | |
| Power Consumption | 0.4 W (Standby) 27 W (Typical) |
| Environmental | |
| Operating Temperature | 41 to 95°F / 5 to 35°C |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 85% |
| Operating Altitude | |
| Storage Altitude | 0 to 40,000' / 0 to 12,192 m |
| Certifications | ENERGY STAR, EPEAT GOLD, RoHS, TCO Certified, as per Manufacturer |
| Physical | |
| Height Adjustment | Yes |
| Rotation Adjustment | Yes |
| Swivel Adjustment | Yes |
| Tilt Adjustment | Yes |
| Mounting-Hole Pattern | 100 x 100 mm |
| Dimensions (W x H x D) | 21.4 x 15.0 x 8.6" / 54.4 x 38.1 x 21.8 cm 21.4 x 12.7 x 2.4" / 54.4 x 32.3 x 7.0 mm (without Stand) |
| Weight | 14.1 lb / 6.4 kg (with Stand) 8.8 lb / 4 kg (without Stand) |
| Warranty Length |
