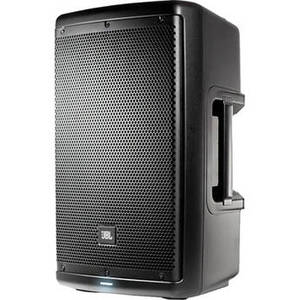

Product Description
The speaker works in a variety of orientations and configurations for use as a main PA or stage monitor. When used as a main speaker, the EON610 is well equipped to cover an audience of up to 200.
A push button on the back of the speaker allows you to physically switch between four different modes: Main, Monitor, Speech, and Sub for incorporating a dedicated subwoofer to extended low-end performance. There is also a built-in EQ, which is available via the Bluetooth control application for iOS and Android devices.
Two mono inputs, each with a combo mic/line XLR-1/4" connector, feature individual signal gain knobs and a master volume knob for the overall level. The two mono inputs are mixed to a mono signal internally, while an XLR loop-thru allows you to route the signal to an additional EON600 series speaker for extending the mono signal for better coverage. For a true stereo L/R operation, two EONs are needed with each to receive independent the left and right signals respectively.
The highly efficient 1000W Class-D amplifier powers the 10" woofer and 1" compression driver, which provide full-range audio (60 Hz to 20 kHz) with a sound pressure level powerful enough to ensure the entire audience can hear your performance. JBL's proprietary Image Control Waveguide offers a 110 x 60° (HxV) coverage pattern and is designed to deliver a more consistent sound to the audience, while keeping the audio off the ceiling and walls. The EON610 includes a power cord.
| PA Speaker | |
| Configuration | Active 2-Way |
| Enclosure Type | Bass-Reflex Loudspeaker |
| Total Power Capacity | 1000 W Peak 500 W Program |
| Constant Voltage / Transformer Taps | |
| Amplifier Power Rating | LF: 700 W Peak 350 W Program HF: 300 W Peak 150 W Program |
| Amplifier Class | Class-D |
| Drivers | |
| HF Driver | 1 x 1" / 25.4 mm Horn-Loaded Polymer Compression Driver |
| LF Driver | 1 x 10" / 254 mm Woofer |
| Magnet | HF: Neodymium |
| Performance | |
| Frequency Range | 52 Hz to 20 kHz -10 dB |
| Frequency Response | 60 Hz to 20 kHz ±3 dB |
| Maximum SPL | 124 dB |
| Coverage Angle | 110° H x 60° V |
| Coverage Angle | |
| Max Input Level | Mic Input: -4 dBu (Balanced) Line Input: +14 dBu (Balanced) |
| Connectivity | |
| Audio I/O | 2 x Combo XLR-1/4" 1 x XLR Thru |
| Signal Processing | |
| Crossover | 1.8 kHz |
| EQ | 3 x Presets (User) 1 x LF Shelf 1 x HF Shelf |
| Parametric EQ | Yes |
| Digital Signal Processing | Voicing Modes |
| Power | |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| AC Power Connector | 1 x IEC |
| Current Consumption | 120 VAC: 1.14 A (1/8 Power) 1.71 A (1/4 Power) 2.03 A (1/3 Power) |
| Physical | |
| Mounting | 1 x 1.38" / 35 mm Pole Socket (Bottom) 3 x M10 Fly Point |
| Handles | 4 |
| Construction Material | Polypropylene, Steel |
| Dimensions | 22 x 12.7 x 11.6" / 55.8 x 32.2 x 29.5 cm |
| Weight | 26 lb / 11.7 kg |
| Warranty Length |
