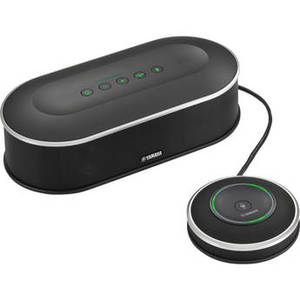

YVC-1000 Unified Communications Microphone and Speaker System
![]() |
From Yamaha
Availability: Item is currently available.
25,236 Points
See more in Electronics
See more in Audio & Video
Product Description
You can connect to the Yamaha YVC-1000-NA Unified Communications Microphone and Speaker System via USB, Bluetooth, or the audio terminals of a conferencing system to provide high quality audio for meetings in academic and professional applications. The range of connection options allows you to quickly adapt to a variety of situations where conferencing might otherwise be difficult due to the lack of a landline or Internet connection.
With integrated Near Field Communication (NFC), you can connect to the device by simply placing a NFC-compatible smartphone or tablet over the NFC logo on the top of the control unit while the Bluetooth button is blinking.
The rear panel features a pair of RCA audio inputs, a pair of RCA audio outputs, a second pair of RCA audio outputs for connecting to external speakers, a USB type B port for connection to a computer, and a port for connecting to the external tabletop microphone. Up to four additional microphones can be added to the system to cover a wider area and accommodate more conference participants.
With integrated Near Field Communication (NFC), you can connect to the device by simply placing a NFC-compatible smartphone or tablet over the NFC logo on the top of the control unit while the Bluetooth button is blinking.
The rear panel features a pair of RCA audio inputs, a pair of RCA audio outputs, a second pair of RCA audio outputs for connecting to external speakers, a USB type B port for connection to a computer, and a port for connecting to the external tabletop microphone. Up to four additional microphones can be added to the system to cover a wider area and accommodate more conference participants.
| Speaker | |
| Frequency Response | 100 Hz to 20 kHz |
| Maximum Sound Pressure Level (SPL) | |
| Magnet Type | |
| Power Output | |
| Signal to Noise Ratio | |
| Total Harmonic Distortion (THD) | |
| Microphone | |
| Frequency Response | |
| Number of Mics | 3 |
| Pickup Pattern | Unidirectional |
| Microphone Coverage | |
| Type | |
| Beamforming Support | |
| Impedance | |
| Technology | |
| Duplex Mode | Echo Cancellation |
| Voice Codecs | |
| Active Noise Cancellation | |
| Frequency Mode | |
| Hearing Aid Compatible | |
| Intercom Function | |
| Modulation | |
| RF Channel Access Method | |
| Session Initiation Protocol (SIP) Support | |
| WebKit Compatible | |
| Connectivity | |
| USB Connections | 1 x USB Type-B USB 2.0 |
| Ethernet Ports | 1 x RJ45 |
| Audio Ports | 1 x 2RCA Input 2 x 2RCA Output |
| Telephone Ports | |
| Wireless Technology | Bluetooth 2.1 + EDR |
| Supported Bluetooth Profiles | HFP 1.6 A2DP |
| Supported Audio Codecs | SBC, mSBC |
| NFC | Yes |
| Supported Communications | |
| WLAN Mode | |
| Wireless Range | 32.8' / 10 m |
| Wireless Security | |
| General | |
| Number of Lines Supported | |
| Max Simultaneous Calls | |
| Antenna Connector | |
| Antenna Gain | |
| Noise Attenuation | |
| Max Volume | 95 dB at 1.6' / 0.5 m |
| Memory Card Slot | |
| Supported Languages | English French German Japanese Korean Spanish Traditional Chinese |
| RF Power | |
| TX Power Range | |
| Display | |
| Screen Size | |
| Screen Resolution | |
| Screen Type | |
| Touchscreen | None |
| System Requirements | |
| Supported Operating Systems | Windows 7 Windows 8.1 Windows 8 macOS X 10.8 macOS X 10.9 |
| Memory Requirement | |
| Storage Requirements | |
| CPU Requirement | |
| Environmental | |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 20 to 85% |
| Storage Temperature | -4 to 122°F / -20 to 50°C |
| Storage Humidity | 10 to 90% |
| Certifications | FCC, as per Manufacturer |
| Power Requirements | |
| Battery Type | |
| Battery Capacity | |
| Battery Chemistry | |
| Battery Voltage | |
| Talk Time | |
| Standby Time | |
| Recharge Time | |
| AC Input Voltage | |
| Power Input | |
| Physical | |
| IP Rating | |
| LED Indicators | |
| Lighted Keypad | |
| Lock Slot | |
| Material of Construction | |
| Wall Mountable | |
| Dimensions | 13.1 x 3.7 x 6.4" / 33.2 x 9.5 x 16.2 cm (Control Unit) 5.3 x 1.4 x 5.3" / 13.6 x 3.6 x 13.6 cm (Microphone) |
| Weight | 4 lb / 1.8 kg (Control Unit) 0.9 lb / 0.4 kg (Microphone) |
