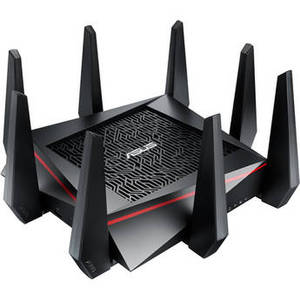

RT-AC5300 Tri-Band Wireless AC5300 Gigabit Router
![]() |
From ASUS
Availability: Item is currently available.
7,843 Points
See more in Electronics
See more in Accessories
See more in Computers
Product Description
With built-in tri-band functionality, the RT-AC5300 Tri-Band Wireless AC5300 Gigabit Router from ASUS allows users to connect to one 2.4 GHz frequency and two separate 5 GHz frequencies. With two 5 GHz operating frequencies this router can support more users without sacrificing bandwidth or network performance. Along with tri-band connectivity, the RT-AC5300 supports the enhanced 802.11ac networking standard and offers a maximum wireless data throughput of up to 5334 Mbps. This enhanced Wi-Fi connectivity allows for low latency gaming, streaming of 4K multimedia content, downloading of large files, and much more. In addition to the 802.11ac networking standard, this router also supports 802.11a/b/g/n network standards making it easy to connect nearly any Wi-Fi enabled device to your network.
On the outside of the RT-AC5300 you will find eight adjustable antennas featuring AiRadar beamforming technology supporting a transmission distance of up to 5,400 square feet (500 square meters). With beamforming technology the wireless signal is beamed directly to the connected device for a more focused, more reliable connection. This ASUS router not only beams the signals to your devices, it has the ability to support more devices without slowing down thanks to MU-MIMO technology.
If a wired connection is what you desire, you can connect to any of the four Gigabit Ethernet ports. Dedicated link aggregation support provides enhanced data transfer speeds when a super fast Internet connection is required. Inside the RT-5300 you will find 128MB flash memory and 512MB of RAM to ensure the router operates smoothly when being pushed to the max.
On the outside of the RT-AC5300 you will find eight adjustable antennas featuring AiRadar beamforming technology supporting a transmission distance of up to 5,400 square feet (500 square meters). With beamforming technology the wireless signal is beamed directly to the connected device for a more focused, more reliable connection. This ASUS router not only beams the signals to your devices, it has the ability to support more devices without slowing down thanks to MU-MIMO technology.
If a wired connection is what you desire, you can connect to any of the four Gigabit Ethernet ports. Dedicated link aggregation support provides enhanced data transfer speeds when a super fast Internet connection is required. Inside the RT-5300 you will find 128MB flash memory and 512MB of RAM to ensure the router operates smoothly when being pushed to the max.
| Wireless | |
| Wireless Frequency Bands | 2.4 GHz, 5 GHz |
| Number of Antennas | 8 |
| MU-MIMO Support | 4 x 4 |
| WLAN Mode | 802.11ac |
| Sensitivity | |
| Antenna Gain | |
| Transmit Power | |
| Supported Protocols | IPv4 IPv6 |
| Antenna Placement | External |
| GSM 2G | |
| GSM 3G/3.5G | |
| Interface | |
| Ports | 1 x Ethernet (RJ45) (Uplink) 4 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) 1 x 5 Gb/s USB Type-A 1 x 480 Mb/s USB Type-A |
| USB Sharing Support | |
| Performance | |
| Throughput | 2.4 GHz: 1000 Mb/s 5 GHz: 2167 Mb/s |
| VPN Throughput | |
| Security | |
| Guest Network Support | |
| Wireless Security | WEP, WPA, WPA2 |
| Hardware | |
| RAM | 512 MB |
| Storage Capacity | 128 MB |
| Processor | |
| Memory Card Slots | |
| Supported File Systems | |
| Display | |
| Supported IEEE Standards | 802.1x |
| DOCSIS Support | |
| Electrical | |
| AC Input Power | 110 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 19 VDC at 3.42 A |
| Power Consumption | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| General | |
| IP Rating | |
| Certifications | |
| Dimensions | 9.6 x 9.6 x 2.6" / 245 x 245 x 65 mm |
| Weight | 4 lb / 1.8 kg |
