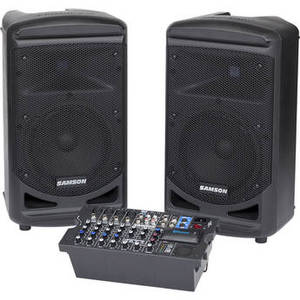

Expedition XP800 800W Portable PA System
![]() |
From Samson
Availability: Item is currently available.
13,090 Points
See more in Electronics
See more in Audio & Video
Product Description
The Expedition XP800 800W Portable PA System from Samson consists of dual speakers and a removable 8-channel mixer and can be used for live music performance, DJ sets, parties, and office or academic applications. The on-board Class-D amplifier offers up to 800 watts of combined output to each speaker, which include an 8" woofer and a 1" high frequency driver. Their ABS enclosures have an integrated 1-3/8" speaker stand mount and a 30° kickback design to allow for versatility in mounting or floor placement options.
The XP800's mixer has a variety of input options, including Bluetooth audio streaming, 4 XLR and 1/4" mic/line inputs, and stereo 1/4", 1/8", and RCA auxiliary inputs. Each channel has an independent bass and treble control for tone shaping, as well as built-in 24-bit effects with a selection of 16 presets. The XP800 ships with a power cord and two 25' speaker cables.
The XP800's mixer has a variety of input options, including Bluetooth audio streaming, 4 XLR and 1/4" mic/line inputs, and stereo 1/4", 1/8", and RCA auxiliary inputs. Each channel has an independent bass and treble control for tone shaping, as well as built-in 24-bit effects with a selection of 16 presets. The XP800 ships with a power cord and two 25' speaker cables.
| Portable PA System | |
| Speaker Configuration | |
| Number of Input Channels | 8 |
| Amplifier Power Rating | 800 W |
| Amplifier Class | Class-D |
| Impedance | |
| Speakers | |
| Enclosure Type | |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 1 x 1" / 25.4 mm Tweeter (per Speaker) |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | 1 x 8" / 20.3 cm Woofer (per Speaker) |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | |
| Input Pad | |
| EQ | 1 x LF Shelf (per Channel) 1 x HF Shelf (per Channel) |
| Semi-Parametric EQ | |
| Effects | 16 x Preset (Factory) |
| DSP | 24-Bit DSP |
| Filters | |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | 20 Hz to 20 kHz |
| Frequency Range | |
| Maximum SPL | |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | |
| Max Input Level | |
| I/O Impedance | |
| SNR | |
| THD | |
| Dynamic Range | |
| Protections | |
| Connectivity | |
| Audio I/O | 3 x XLR 3-Pin Mic/Line Input 1 x XLR 3-Pin Mic Input 3 x 1/4" TRS Mic/Line Input 1 x 1/4" TRS Line/Hi-Z Input 2 x 1/4" TRS Line Input 1 x 1/8" / 3.5 mm TRS Input 1 x Stereo RCA Input 2 x 1/4" TRS Monitor Output 2 x 1/4" TRS Speaker Output |
| Phantom Power | |
| USB | 1 x USB Type-A (Wireless Audio) |
| Media Playback | |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Bluetooth | 3.0 |
| Bluetooth Profiles | A2DP |
| Pairing | |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | |
| Battery Type | |
| Approximate Battery Life | |
| Battery Charging Time | |
| Internal Battery Capacity | |
| Battery Cycle Count | |
| AC Input Power | |
| Power Adapter Output | |
| Current Consumption | |
| Power Consumption | |
| DC Input Power | |
| AC Power Connector | |
| Physical | |
| Cable Length | |
| Transport Options | |
| Mounting | |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Certifications | |
| Dimensions | 20.1 x 10.6 x 19" / 510.5 x 269.2 x 482.6 mm |
| Weight | 40.5 lb / 18.4 kg |
| Warranty Length |
