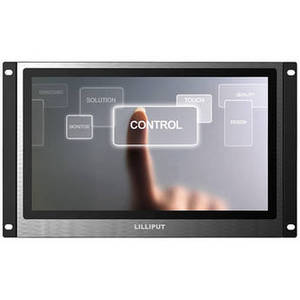

TK1330-NP/C/T-B 13.3"-Class Full HD Commercial Touchscreen IPS LED Display
 |
From Lilliput
Availability: Item is currently available.
7,046 Points
See more in Electronics
See more in Accessories
See more in Computers
Product Description
Add a touchscreen display to your system with the Lilliput TK1330-NP/C/T-B 13.3"-Class Full HD Commercial Touchscreen IPS LED Display. It supports up to 10 points of touch for interactivity, and has a Full HD native resolution of 1920 x 1080 for detailed image quality. With a brightness rating of 300 cd/m², a contrast ratio of 800:1, and viewing angles up to 170° thanks to IPS technology, colors should appear clear in most installation settings. The monitor is equipped with HDMI, DVI, VGA, and BNC A/V inputs and includes a variety of cables for instant connectivity.
| Display | |
| Screen Size (Diagonal) | 13.3" |
| Resolution | 1920 x 1080 |
| Supported Display Resolutions | |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 300 cd/m? |
| Viewing Angle (H x V) | 170 x 170° |
| Screen Area | 11.55 x 6.50" / 293.47 x 165.08 mm |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 800:1 |
| Dynamic Contrast Ratio | |
| Response Time | 35 ms |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | 0.15285 x 0.15285 mm |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI Audio, Video 1 x DVI Video 1 x 15-Pin VGA Video 1 x BNC Video 1 x BNC Audio |
| USB Ports | 1 x USB (Version Unspecified) Type-A - Control |
| Ethernet Ports | None |
| Control Ports | None |
| Digital Media Slot | None |
| General | |
| TV Tuner | No |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Capacitive |
| Multi-Touch Points | 10 |
| Surface Treatment | |
| Hardness Rating | 3H |
| Haze Level | |
| Audio | |
| Built-In Speakers | Yes, 1 x 1 W |
| Speaker Configuration | 1-Channel |
| Processing | |
| External Speaker Output | |
| Operating System | |
| Processor | |
| L2 Cache | |
| Storage | |
| RAM | |
| Supported File Systems | |
| GPU | |
| Chipset | |
| Slot | |
| Operating System Support | |
| Convenience | |
| Built-In Mic | |
| NFC | |
| Integrated Camera | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Picture in Picture (PIP) | |
| Supported Languages | English Traditional Chinese |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Typical: 8.0 W |
| DC Input Power | 7 to 24 VDC |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Certifications | |
| Physical | |
| Wall Mounting | 75 x 75mm 100 x 100mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 13.1 x 6.6 x 1.4" / 333.5 x 166.6 x 34.5 mm |
| Weight | 4.19 lb / 1.9 kg |
| Warranty Length | Limited 1-Year Warranty |
