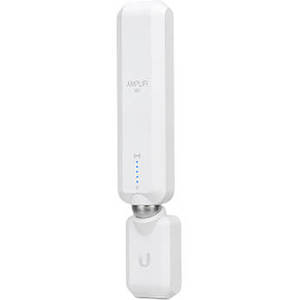

AFI-P-HD AmpliFi High Density Home Mesh Point
AFI-P-HD AmpliFi High Density Home Mesh Point
From AMPLIFI
Availability: Item is currently available.
3,054 Points
See more in Electronics
See more in Accessories
See more in Computers


Product Description
Extend the reach of your AmpliFi mesh network with the AFI-P-HD AmpliFi High Density Home Mesh Point from Ubiquiti Networks. This antenna features dedicated signal LEDs that indicate signal strength in relation to the base unit and a magnetic connector from which the top portion of the antenna can be adjusted for optimal signal reception. This AmpliFi extender operates on the 2.4 GHz band supporting data rates of up to 450 Mbps and the 5 GHz band supporting data rates of up to 1300 Mbps, and comes compatible with 802.11a/b/g/n/ac Wi-Fi standards. In addition to enhanced Wi-Fi data rates, the AFI-P-HD supports 3x3 MIMO technology along with a maximum transmit power of up to 26 dBm.
Connectivity
Wi-Fi Wi-Fi 5 (802.11ac)
Ports
Number of Antennas 1 x Internal
MU-MIMO Support 3 x 3
Beamforming Support No
Wireless Security WPA-PSK, WPA2, WPA2-PSK, AES, TKIP
Bluetooth 4.0 LE
Communication Protocol
Virtual Assistant Support
General
Throughput 2.4 GHz: 450 Mb/s
5 GHz: 1300 Mb/s
Transmit Power 26 dBm
Antenna Gain
Guest Network Support
Max SSIDs Supported
Mobile Operating System Support
Operation Modes
Supported IEEE Standards
Supported Protocols
Processor
Memory
Flash Memory
Speakers
Built-In Microphones
Display
Electrical
AC Input Power
DC Input Power 9 VDC at 1.5 A
Power Consumption 11 W
Environmental
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Humidity 5 to 95%
Storage Temperature
Storage Humidity
Physical
Certifications CE, FCC, IC, as per Manufacturer
IP Rating
Material of Construction Plastic
Dimensions 1.6 x 3.0 x 1.0" / 42.0 x 76.7 x 26.5 mm
Weight 3.7 oz / 105 g
