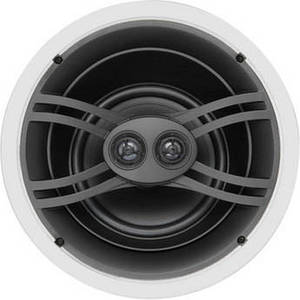

NS-IW280CWH In-Ceiling Speaker System
 |
From Yamaha
Availability: Item is currently available.
2,296 Points
See more in Electronics
See more in Home Theater
Product Description
The NS-IW280CWH is a versatile, easy-to-install in-ceiling speaker that reproduces natural sound like only Yamaha can. The woofer is set in a tilted mounting allowing the user to aim the sound. Swiveling "Sound Max" tweeters create sizzling highs up to 28kHz. For maximum flexibility, the aluminum grill is paintable and comes with a protective cover.
| Speaker | |
| Active or Passive | |
| Number of Included Speakers | 2 |
| Speaker Type | L/R Pair |
| Speaker Configuration | 3-Way |
| Power Handling | 100 W Peak 30 W RMS |
| Recommended Amplifier Power | |
| Constant Voltage / Transformer Taps | |
| Amplifier Power Rating | |
| Amplifier Class | |
| Impedance | 8 Ohms |
| Transformer Wattage | |
| Enclosure Type | |
| Shielded | No |
| Drivers | |
| Full-Range Driver | |
| Full-Range Voice Coil | |
| HF Driver | 2 x 0.75" / 19 mm Dome Tweeter |
| HF Voice Coil | |
| MF Driver | None |
| MF Voice Coil | |
| LF Driver | 6.5" / 165 mm Polypropylene-Coated Woofer |
| LF Voice Coil | |
| Magnet | |
| Performance | |
| Frequency Range | |
| Frequency Response | 65 Hz to 28 kHz |
| Maximum SPL | |
| Sensitivity | 85 dB |
| Coverage Angle | |
| Coverage Angle | |
| Directivity | |
| Crossover | 6 kHz 9 kHz |
| Recommended High-Pass Filter | |
| Maximum Input Voltage | |
| Transformer Insertion Loss | |
| Input Impedance | |
| Input Sensitivity | |
| Protections | |
| Connectivity | |
| I/O Connectors | 1 x Binding Post Pair |
| Maximum Wire Gauge | |
| Bluetooth | |
| Bluetooth Profiles | |
| Wireless Range | |
| Certifications | |
| Water / Weather Resistance | |
| IP Rating | |
| Operating Temperature | |
| Operating Humidity | |
| Power Adapter Output | |
| Physical | |
| Color | White |
| Mounting | In-Ceiling |
| Cutout Depth | 4.8" / 122 mm |
| Cutout Size | 9.4" / 240 mm |
| Mount Surface Thickness | |
| Rotation Range | |
| Construction Material | Aluminum |
| Dimensions | 10.3 x 5" / 262 x 127 mm |
| Weight | 3.3 lb / 1.5 kg (Each Speaker) |
| Warranty Length |
