Product Description

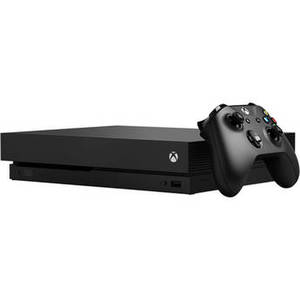

With 6 Teraflops of graphical power and 12GB of GDDR5 VRAM, the Xbox One X can play games with native 4K resolution running at up to 60 frames per second (fps). It also supports AMD FreeSync, when paired with a compatible monitor, which reduces screen tearing. The Xbox One X also supports HDR10 for a higher contrast ratio.
The Xbox One X may excel at playing 4K games, but it's also compatible with all existing Xbox One games, including Xbox Play Anywhere titles. Select games for both the Xbox 360 and original Xbox will also be backward compatible with the Xbox One X.
With a 4K UHD Blu-ray Disc player, the Xbox One X can play UHD Blu-ray Discs. The Xbox One X features an HDMI 1.4b input and an HDMI 2.0b output. It also has three USB 3.0 ports as well as an IR out port. For audio, the Xbox One X has a S/PDIF output that supports DTS 5.1, Dolby Digital 5.1, and Dolby TrueHD with Atmos. Go online via wired Ethernet LAN or wireless dual-band Wi-Fi. Sign up for an Xbox Live Gold membership in order to play online multiplayer.
| Hardware | |
| SoC | 2.3 GHz Custom 8-core x86 AMD Enhanced Jaguar CPU (64-bit) Custom Arctic Islands-based GPU @ 1.172 GHz Polaris features 6 TFLOPS |
| Memory | 12 GB of GDDR5 RAM |
| On-Board Flash Storage | 8 GB |
| Internal Storage | 1 TB |
| Supported Storage Expansion Options | USB flash drive Cloud storage External hard drive |
| Optical Drive | Ultra HD Blu-ray Blu-ray (up to 50 GB) DVD CD |
| Color Depth | 24-bit (Traditional) 30/36-bit (Deep Color) |
| Input/Output Connectors | 3 x USB 3.0 1 x IR out |
| IR Blaster | Integrated |
| Ethernet | 1 x 10/100/1000 Mbps Gigabit Ethernet RJ-45 LAN |
| Wi-Fi | Wi-Fi 5 (802.11ac) Dual-Band (2.4 GHz, 5 GHz) |
| Video | |
| Video Outputs | 1 x HDMI-in 1.4b 1 x HDMI-out 2.0b HDMI pass-through supported |
| Max Resolution | 2160p (4K UHD) @ 60 Hz AMD FreeSync HDMI Variable Refresh Rate (when ratified) |
| HDR | HDR10 |
| Content Protection | HDCP 2.2 |
| Video Codecs | HEVC/H.265 VP9 AVC/H.264 MPEG-2 MPEG-4 Part 2 VC1/WMV9 |
| Audio | |
| Audio Outputs | 1 x S/PDIF |
| HDMI Audio | Encoded Dolby Digital 5.1 DTS 5.1 PCM 2.0, 5.1, and 7.1 Dolby TrueHD w/Atmos (from games) Pass-Thru Dolby TrueHD (opt. Atmos) DD+ (opt. Atmos) DTS-HR/MA (opt. DTS:X) |
| S/PDIF | Dolby Digital 5.1 DTS 5.1 PCM 2.0 |
| Audio Codecs | AAC MP3 MPEG1 WMV |
| General | |
| Controllers | Supports up to 8 wireless or infrared controllers Supports up to 3 wired controllers |
| Power Supply | 245 W (internal) |
| Dimensions | 11.8 x 9.4 x 2.4" / 30 x 24 x 6 cm |
| Weight | 8.4 lb / 3.8 kg |
