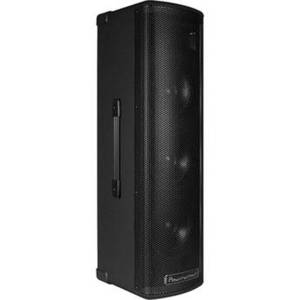

PW3X6BT 3x6" 2-Way 300W All-In-One Portable Bluetooth-Enabled PA System
![]() |
From Powerwerks
Availability: Item is currently available.
8,048 Points
See more in Electronics
See more in Audio & Video
Product Description
The Powerwerks PW3X6BT is a 3x6" 2-way 300W all-in-one portable Bluetooth-enabled PA system designed to provide convenient signal mixing and amplification for musicians, vocalists, and presenters in clubs, special events, and small concert venues. 300W of amplification drive three 6" woofers and a 1" Neodymium compression driver to produce a frequency response of 65 Hz to 20 kHz. A 1/4" sub output allows easy connection to a dedicated subwoofer for additional low-frequency reinforcement while a dedicated balanced 1/4" TRS monitor output can be routed to an external recorder.The integrated 3-channel mixer features XLR, 3.5mm, and 1/4" inputs to accommodate signal from microphones, line sources, or non-Bluetooth devices. A built-in Bluetooth receiver enables wireless streaming of music from smartphones, tablets, and laptops. Charge your mobile devices via two USB Type-A ports on the rear panel.The first two channels boast sends that feed a 24-bit DSP engine, which grants reverb with four preset selections. All three channels offer controls for volume and 2-band equalization. Daisy-chain other Powerwerks PW units via XLR Powerlink input and output jacks. Transport between rooms and gigs is made simple courtesy of the side-mounted carry handle.
| Portable PA System | |
| Speaker Configuration | |
| Number of Input Channels | |
| Amplifier Power Rating | 300 W Peak (at 4 Ohms) |
| Amplifier Class | |
| Impedance | System: 2 x 4 Ohms LF Driver: 3 x 8 Ohms (Each Driver) |
| Speakers | |
| Enclosure Type | |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 1 x 1" / 25.4 mm Compression Driver |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | 3 x 6" / 152.4 mm Woofer |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | HF Driver: Neodymium |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | 3 kHz |
| Input Pad | |
| EQ | 1 x HF Shelf at 10 kHz 1 x LF Shelf at 100 Hz |
| Semi-Parametric EQ | |
| Effects | Yes |
| DSP | 24-Bit DSP |
| Filters | High-Pass: 150 Hz |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | Speaker: 65 Hz to 20 kHz Subwoofer Output: 20 Hz to 150 Hz |
| Frequency Range | |
| Maximum SPL | 118 dB |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | Mic Input: +49 dB Line Input: +35 dB Aux Input: +25 dB |
| Max Input Level | |
| I/O Impedance | |
| SNR | Bluetooth: 94 dB |
| THD | |
| Dynamic Range | |
| Protections | |
| Connectivity | |
| Audio I/O | 1 x XLR 3-Pin Male Link Output 1 x 1/4" TRS Monitor Output 1 x 1/4" TS Subwoofer Output 2 x XLR 3-Pin Female Input 1 x XLR 3-Pin Female Link Input 2 x 1/4" TS Female Input 1 x 1/8" / 3.5 mm TRS Input |
| Phantom Power | +15 V |
| USB | 2 x USB Type-A |
| Media Playback | |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Bluetooth | 3.0 + EDR |
| Bluetooth Profiles | A2DP |
| Pairing | |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | 2 |
| Bluetooth Input Gain | |
| Transmitter Power | 2 dBm |
| Bluetooth Range | |
| Power | |
| Battery Type | |
| Approximate Battery Life | |
| Battery Charging Time | |
| Internal Battery Capacity | |
| Battery Cycle Count | |
| AC Input Power | 120 VAC, 60 Hz |
| Power Adapter Output | |
| Current Consumption | |
| Power Consumption | 300 W (Typical) |
| DC Input Power | |
| AC Power Connector | |
| Physical | |
| Cable Length | |
| Transport Options | |
| Mounting | |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | MDF |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Certifications | |
| Dimensions | 9.4 x 8.1 x 28.7" / 240 x 205 x 730 mm |
| Weight | 29 lb / 13.2 kg |
| Warranty Length |
