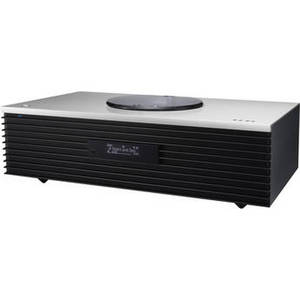

Technics OTTAVA f SC-C70 All-In-One Music System
Technics OTTAVA f SC-C70 All-In-One Music System
From Panasonic
Availability: Item is currently available.
19,820 Points
See more in Electronics
See more in Audio & Video


Product Description
The Panasonic Technics OTTAVA f SC-C70 All-In-One Music System is designed to meet the needs of any audiophile. Three jitter elimination and noise-shaping optimization (JENO) engines, combined with five speakers, deliver powerful hi-fi sound. Acoustic lenses placed in front of the two tweeters provides an expanded sound field. Additionally, the Space Tune preset setting calibrates and optimizes the sound by analyzing the room's acoustic environment.

Furthermore, this system features wide compatibility with music sources. The OTTAVA f system supports CD, AM/FM radio, USB, digital optical, analog 3.5mm, DLNA, AirPlay, Internet radio, Spotify, TIDAL, Bluetooth, and Wi-Fi. You can even listen to your favorite tunes privately through the headphone jack. Controlling this system is made easy with the aluminum touch keys and the included remote control, or you can access your music and system controls using the Technics Music app on your iOS or Android device.

Main Unit
Frequency Range 40 Hz to 50 kHz
Input & Output 1x 1/8" / 3.5 mm AUX input
1x USB Type-A port
1x LAN port
1x digital optical input
1x AC power input
Ethernet Interface LAN (10BaseT, 100BaseTx)
Wi-Fi IEEE 802.11 b/g/n
2.4 GHz band (channels 1-13)
CD Playback Format Audio CD
CD-R and CD-RW
Tuner FM:
Preset Memory: 30 stations
Frequency Range: 87.9 to 107.9 MHz, 87.5 to 108.0 MHz
AM
Preset Memory: 15 stations
Frequency range: 520 to 1710 kHz
Bluetooth V2.1+EDR
Wireless Equipment Classification: Class 2 (2.5 mW)
Supported Profiles: A2DP, AVRCP
Supported Codecs: AAC, SBC
Frequency Range: 2.4 GHz band FH-SS
Operating Distance: Approximately 33' / 10 m line of sight
Audio Formats & Supported Codecs USB Type-A & LAN (DLNA):
WAV (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
FLAC (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
DSD (2.8 MHz, 5.6 MHz)
AIFF (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
ALAC (32, 44.1, 48, 88.2, 96, 176.4, 192 kHz / 16, 24 bit)
AAC (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
WMA (32, 44.1, 48 kHz / 16-320 kbps)
MP3 (32, 44.1, 48 kHz / 16-320 kbps)
AirPlay Yes
Speaker
Woofer 2x 3.1" / 8 cm cone type
Tweeter 2x 0.8" / 2.0 cm dome type
Subwoofer 4.7" / 11.9 cm cone type
Amplifier Output Power Front Speaker (L/R): 30 W + 30 W
Subwoofer: 40 W
FTC Output Power Front Speaker (L/R): 20 W + 20 W
Subwoofer: 35 W
Input Sensitivity/Impedance AUX (LOW): 575 mVrms
AUX (HIGH): 290 mVrms
General
Power Supply (AC) 120 V / 60 Hz
Power Consumption 45 W
Dimensions (WxHxD) 17.7 x 5.6 x 11" / 45 x 14.2 x 27.9 cm
Weight 17.2 lb / 7.8 kg
