Product Description
32-bit audio is down-sampled using a sample-rate converter, and DSD 64/128 can be played back through conversion to PCM. DSDNative, on the other hand, stays in the DSD world. The player sports 3.5mm, 3-pole unbalanced and 2.5mm, 4-pole balanced headphone jacks. The balanced output can remove noise (common mode noise) that can occur in signal and inverting amplifier signal, while offering increased power output due to its double transmitting of signals.

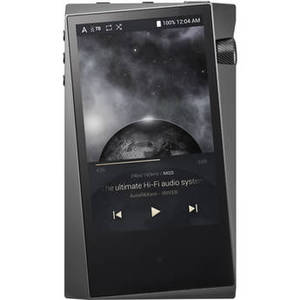

The player sports a quirky design with a screen diagonally inset against a rectangular backdrop for an idiosyncratic look. The volume wheel is designed to be protruding slightly from a concave surface so that you can control volume with a simple motion of sliding your finger up and down. With onboard quad-core CPU, the SR15 possesses more than enough power for playing digital music and powering the user interface.
The audio player supports USB audio digital out and allows you to connect diverse digital-input portable amps through USB. It can transfer DSD in native through DoP and convert 5.6 MHz DSD into PCM for output to portable amps that do not support DoP. External amplifiers can be connected to the device utilizing a separately available OTG cable. An aluminum body lends durability to the whole construction.
| Audio | |
| DAC | 2 x Cirrus Logic CS43198 24-Bit |
| Amplifier | |
| External DAC Functionality | Yes |
| Audio Resolution | PCM: 192 kHz / 24-Bit DSDNative: 2.8 MHz / 1-Bit DSD128: 5.6 MHz / 1-Bit |
| Frequency Response | 20 Hz to 20 kHz ±0.03 dB (Unbalanced Headphone Out) 20 Hz to 20 kHz ±0.024 dB (Balanced Headphone Out) 10 Hz to 70 kHz ±0.038 dB (Unbalanced Headphone Out) 10 Hz to 70 kHz ±0.065 dB (Balanced Headphone Out) |
| Impedance | 1.6 Ohms (Balanced Headphone Out) 1.1 Ohms (Unbalanced Headphone Out) |
| Volume Control | Digital |
| THD + N | 0.0008% at 1 kHz (Unbalanced) 0.0009% at 1 kHz (Balanced) |
| Audio Power Output | |
| Maximum Output Current | |
| Maximum Output Voltage | |
| Signal to Noise Ratio | 122 dB (Balanced) 122 dB (Unbalanced) |
| Clock Jitter | 45 ps |
| Crosstalk | 137 dB at 1 kHz (Unbalanced Headphone Out) 137 dB at 1 kHz (Balanced Headphone Out) |
| Balance Control | |
| Performance | |
| CPU | Quad-Core |
| RAM | |
| Operating System | |
| Internal Storage Capacity | 64 GB |
| Maximum Storage Capacity | 400 GB |
| Flash Media Slot | 1 x microSDXC |
| Display | 3.3" LCD (480 x 800 Resolution) |
| Operation Method | Physical Buttons, Touchscreen, Volume Wheel |
| Media Support | |
| FM Tuner | No |
| Video Recording | No |
| Formats Supported | Audio: WAV, FLAC, WMA, MP3, OGG, APE, AAC, ALAC, AIFF, DFF, DSF |
| Connectivity | |
| Wireless | Wi-Fi 4 (802.11n) |
| Bluetooth Codecs | aptX HD |
| Connections | 1 x 1/8" / 3.5 mm Headphone Output 1 x 2.5 mm Balanced Headphone Output 1 x Micro-USB USB 2.0 Input |
| Power | |
| Battery | Built-In Rechargeable Lithium-Polymer Battery 3150 mAh |
| General | |
| System Requirements | |
| Supported Languages | |
| Water Resistance | None |
| Temperature | |
| Dimensions (W x H x D) | 2.3 x 3.9 x 0.6" / 57.5 x 99.7 x 16.1 mm |
| Weight | 5.43 oz / 154 g |
