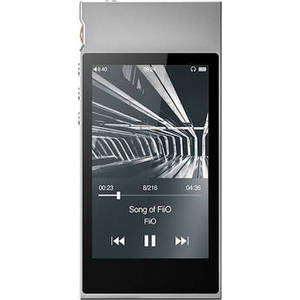

M7 Portable High-Resolution Lossless Audio Player (Silver)
 |
From FiiO
Availability: Item is currently available.
4,440 Points
See more in Electronics
See more in Audio & Video
Product Description
The silver FiiO M7 is a portable high-resolution lossless audio player designed to deliver wired or wireless audio reproduction for audiophiles and music lovers on the go. It boasts a quad-core Exynos 7270 14nm processor, 2GB of internal storage, and support for a microSD card up to 512GB in capacity. Listen to music via the built-in FM tuner, stream LDAC, aptX, or aptX-HD audio via Bluetooth 4.2, or play a variety of file types such WAV, FLAC, AAC, and MP3. The M7 supports DSD as well as PCM audio and compressed files. A 3.2" color TFT touchscreen displays the easy-to-use UI in 480 x 800 resolution at 292 ppi. The built-in rechargeable battery provides up to 20 hours of playback time using the headphone output or up to 30 hours of operating time using the Bluetooth output. Charging, file transfers, and USB audio are handled via the USB Type-C port. A 3.5mm stereo mini jack functions as a headphone or line output. The M7 ships with a custom USB Type-C cable, a water-resistant case, and a tempered glass screen protector.
| Audio | |
| DAC | 1 x ES9018Q2C 32-Bit |
| Amplifier | |
| External DAC Functionality | No |
| Audio Resolution | PCM: 192 kHz / 24-Bit DSDNative: 2.822 MHz / 1-Bit |
| Frequency Response | 10 Hz to 90 kHz ±3 dB (Unbalanced Headphone Out) 20 Hz to 90 kHz ±3 dB (Unbalanced Line Out) |
| Impedance | 2 Ohms (Unbalanced Headphone Out) |
| Gain Settings | None |
| Volume Control | Digital (60 Steps) |
| THD + N | 0.004% at 1 kHz (Unbalanced) |
| Audio Power Output | 70 mW at 16 Ohms (Unbalanced Headphone Out) 40 mW at 32 Ohms (Unbalanced Headphone Out) |
| Maximum Output Current | |
| Maximum Output Voltage | 3.35 Vp-p 1.2 Vrms |
| Signal to Noise Ratio | >117 dB (Unbalanced Headphone Out) >117 dB (Unbalanced Line Out) |
| Clock Jitter | |
| Crosstalk | |
| Balance Control | Yes |
| Custom Equalizer | Yes |
| Performance | |
| CPU | 1.4 GHz Samsung Exynos 7270 14nm Quad-Core |
| RAM | 768 MB |
| Operating System | Proprietary |
| Internal Storage Capacity | 2 GB |
| Maximum Storage Capacity | 514 GB |
| Flash Media Slot | 1 x microSD (Unspecified Type) |
| Display | 3.2" LCD (480 x 800 Resolution) |
| Operation Method | Physical Buttons, Touchscreen, Volume Wheel |
| Media Support | |
| FM Tuner | Yes |
| FM Frequency Range | 76 - 108 MHz |
| Video Recording | No |
| Video Playback | No |
| Formats Supported | Audio: DSD, APE-FAST, Apple Lossless, AIFF, FLAC, WAV, WMA Lossless Audio: AAC, MP3, WMA, OGG |
| Connectivity | |
| Wireless | Bluetooth 4.2 |
| Bluetooth Codecs | aptX, aptX HD, LDAC |
| Connections | 1 x 1/8" / 3.5 mm Headphone / Line Output 1 x USB Type-C USB 3.0 Input |
| Built-In Mic | No |
| Power | |
| Battery | 1 x Built-In Rechargeable Lithium-Polymer Battery 1880 mAh Providing up to 30 Hours per Charge for Audio Playback |
| Charging Time | Full Charge: 2.5 Hours |
| General | |
| System Requirements | |
| Supported Languages | |
| Water Resistance | None |
| Temperature | |
| Dimensions (W x H x D) | 2.0 x 4.3 x 0.5" / 52.0 x 109.0 x 13.0 mm |
| Weight | 4.09 oz / 116 g |
