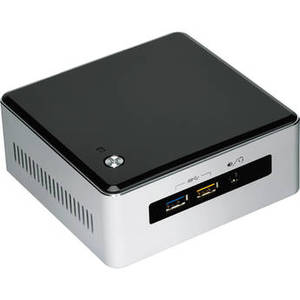

NUC5i3RYHS Mini PC NUC Kit
![]() |
From Intel
Availability: Item is currently available.
6,489 Points
See more in Electronics
See more in Desktop Computers
See more in Computers
Product Description
The NUC5i3RYHS Mini PC NUC Kit from Intel is a compact system that can be placed discreetly while providing the performance of a 2.0 GHz Intel Core i3-5005U dual-core processor with integrated graphics. It features two SO-DIMM slots that can accept up to 16GB of DDR3L 1333/1600 MHz of RAM. For long-term storage, it has room to hold a 2.5" hard drive or SSD as well as an mSATA drive connected to the M.2 slot. Once a storage drive is added, you must install an optional operating system such as Windows and Linux. It also features a mini DisplayPort and mini HDMI output for delivering high-definition content to your monitor or TV. In addition to outputting video, the system features an infrared Rx sensor that you can use an optional remote to control it right from your couch.
This NUC connects to the internet with its Gigabit Ethernet jack. For connecting with your wired peripherals, it offers four USB 3.0 Type-A ports and two USB 2.0 Type-A ports via internal header. To save desk space, the system may be mounted to a wall or the back of your VESA-compatible monitor using an optional VESA mount bracket. Moreover, you may personalize this system with different styles and features by replacing the lid. When fully equipped, the Intel NUC Mini PC is designed for everyday use and gives you the power to play, create, and entertain.
This NUC connects to the internet with its Gigabit Ethernet jack. For connecting with your wired peripherals, it offers four USB 3.0 Type-A ports and two USB 2.0 Type-A ports via internal header. To save desk space, the system may be mounted to a wall or the back of your VESA-compatible monitor using an optional VESA mount bracket. Moreover, you may personalize this system with different styles and features by replacing the lid. When fully equipped, the Intel NUC Mini PC is designed for everyday use and gives you the power to play, create, and entertain.
| Operating System | CentOS Linux, Windows 10 Home, Windows 7 |
| Performance | |
| CPU Architecture | x86 |
| Chipset | |
| CPU Socket | BGA 1168 |
| CPU | 2 GHz Intel Core i3-5005U Dual-Core |
| CPU | |
| Maximum Boost Speed | |
| L3 Cache | 3 MB |
| Memory Type | 1600 MHz DDR3L |
| Total Installed Memory | 0 GB |
| Memory Configuration | 0 x 0 GB |
| Maximum Memory Capacity | 16 GB |
| Memory Slot Type | 204-Pin SO-DIMM |
| Memory Slots | (2 Available) |
| Buffered Memory | |
| ECC Memory | No |
| Intel Optane Memory | |
| Graphics Type | Integrated |
| GPU | Intel HD Graphics 5500 |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Adaptive Sync Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | 1 x 2.5" (Internal) |
| 2.5" Slots | |
| SSD Slots | None |
| Total Installed Capacity | None |
| Solid State Storage | |
| Hard Disk Storage | |
| Hybrid Storage | |
| PCI Expansion | 1 x M.2 2230 (E-Key) x4 |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | |
| I/O | |
| Ports | 4 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
| USB Type-C Ports | |
| Display | 1 x Mini DisplayPort 1.2 Output 1 x Mini HDMI 1.4a Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
| Built-In Speakers | None |
| Built-In Microphones | None |
| Media Card Slots | None |
| Communications | |
| Ethernet | 1 x RJ45 (10/100 Mb/s Fast Ethernet) |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| MU-MIMO Support | None |
| Bluetooth | Yes |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Maximum Runtime | |
| Keyboard & Mouse | |
| Keyboard | None |
| Pointing Device | None |
| General | |
| Security | |
| Power Supply | 15 W |
| AC Input Power | |
| Operating Temperature | |
| Operating Humidity | |
| Mounting-Hole Pattern | |
| Dimensions | |
| Weight | |
| Warranty Length | Limited 3-Year Warranty |
