Product Description

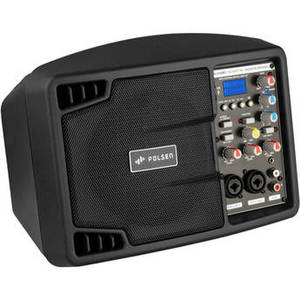

Featuring a 5" driver and a 150W Class-D amplifier, the PA-5150BT offers plenty of power to fill a room. It is equipped with Bluetooth for streaming, two inputs that accept mic- and line-level signals and has an aux stereo input for a CD, DVD, or other line-level audio source. An additional 3.5mm mini-plug input is available for an MP3 player or a smartphone. An integrated mixer with a 2-band EQ and an echo effect provides additional control of your sound.
The PA-5150BT boasts an integrated USB port, so you can plug in a thumb drive to record your performance or play your stored MP3 files through the speaker. For extra adaptability, the Bluetooth allows you to play tracks through the PA-5150BT wirelessly from a Bluetooth-compatible device like a smartphone.
| Portable PA System | |
| Speaker Configuration | 1 x Full-Range Loudspeaker |
| Number of Input Channels | 3 (2 x Mono, 1 x Stereo) |
| Amplifier Power Rating | 150 W Peak (at 6 Ohms) 125 W RMS (at 6 Ohms) |
| Amplifier Class | Class-D |
| Impedance | 6 Ohms |
| Speakers | |
| Enclosure Type | Bass-Reflex |
| Full-Range Driver | 1 x 5" / 12.7 cm |
| Full-Range Driver (Oval) | |
| HF Driver | |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | |
| Input Pad | |
| EQ | 1 x HF Shelf: ±15 dB at 12 kHz 1 x LF Shelf: ±15 dB at 80 Hz |
| Semi-Parametric EQ | None |
| Effects | 1 x Echo (Type Unspecified) |
| DSP | |
| Filters | None |
| Dynamic Processing | Compression |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | 80 Hz to 14 kHz -10 dB 100 Hz to 10 kHz +3 dB |
| Frequency Range | |
| Maximum SPL | 114 dB SPL |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | XLR Mic Input: -40 dBu 1/4" Line Input: -20 dBu RCA Input: -10 dBu 1/4" / XLR Mic/Line Input: 0 dBu |
| Gain Range | Up to +30 dB |
| Max Input Level | +20 dB |
| I/O Impedance | Input: 20 Kilohms |
| SNR | |
| THD | |
| Dynamic Range | |
| Protections | |
| Connectivity | |
| Audio I/O | 3 x Combo XLR-1/4" Balanced Mic/Line Input 1 x Stereo RCA Aux Input 1 x 1/8" / 3.5 mm TRS Unbalanced Aux Input 1 x XLR 3-Pin Male Mic/Line Thru 1 x 1/4" TRS Unbalanced Speaker Output |
| Phantom Power | +48 V |
| USB | 1 x USB Type-A (Audio Recording, Media Playback) |
| Media Playback | |
| Media & File Formats Supported | |
| Network I/O | None |
| Wireless Connectivity | Bluetooth, IR Remote |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Bluetooth | Yes |
| Bluetooth Profiles | |
| Pairing | Manual |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | |
| Power | |
| Battery Type | |
| Approximate Battery Life | |
| Battery Charging Time | |
| Internal Battery Capacity | |
| Battery Cycle Count | |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz (3.15 A H 250 V) |
| Power Adapter Output | |
| Current Consumption | |
| Power Consumption | 180 W |
| DC Input Power | |
| AC Power Connector | 1 x IEC |
| Physical | |
| Cable Length | |
| Transport Options | 1 x Handle (Top) |
| Mounting | 1 x Mic Stand Socket (Bottom) |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Certifications | CE, WEEE, as per Manufacturer |
| Dimensions | 11.4 x 8.1 x 6.8" / 28.96 x 20.57 x 17.27 cm |
| Weight | 6.5 lb / 2.95 kg |
| Warranty Length | Limited 1-Year Warranty |
