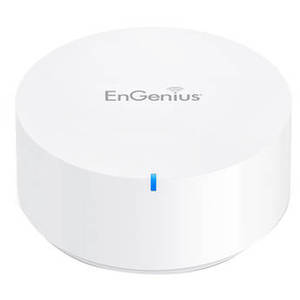

ESR580 Tri-Band Smart Whole-Home Wi-Fi System
![]() |
From EnGenius
Availability: Item is currently available.
3,318 Points
See more in Electronics
See more in Accessories
See more in Computers
Product Description
Blanket your home in wireless coverage with the ESR580 Tri-Band Smart Whole-Home Wi-Fi System. Capable of up to 2200 Mb/s of Wi-Fi data throughput, the tri-band ESR580 router supports mesh technology, which allows you to create a single, seamless network by using multiple compatible mesh routers together.
The ESR580 comes equipped with two Gigabit Ethernet ports, ideal for wired connections to computers, game consoles, TV set-top boxes, and other Ethernet-enabled devices. Multi-user MIMO support allows for multiple simultaneous data connections, while beamforming support lets the router focus its Wi-Fi signals on nearby wireless devices.
| Connectivity | |
| Wi-Fi | Wi-Fi 5 (802.11ac); Tri-Band (2.4 & 5 + 5 GHz) |
| Ports | 2 x RJ45 Gigabit Ethernet 1 x USB Type-A |
| Number of Antennas | |
| MU-MIMO Support | 2 x 2 |
| Beamforming Support | No |
| Wireless Security | WPA2, AES |
| Bluetooth | None |
| Communication Protocol | |
| Virtual Assistant Support | |
| General | |
| Throughput | 2.4 GHz: 400 Mb/s 5 GHz: 867 Mb/s |
| Transmit Power | 19 to 21 dBm |
| Antenna Gain | 4.4 to 5.6 dBi |
| Guest Network Support | |
| Max SSIDs Supported | |
| Mobile Operating System Support | |
| Operation Modes | Access Point, Wireless Router |
| Supported IEEE Standards | |
| Supported Protocols | |
| Hardware | |
| Processor | 717 MHz ARM Cortex A7 Quad-Core |
| Memory | |
| Flash Memory | |
| Speakers | |
| Built-In Microphones | |
| Display | |
| Electrical | |
| AC Input Power | |
| DC Input Power | 12 VDC at 1 A |
| Power Consumption | |
| Operating Temperature | |
| Operating Humidity | |
| Storage Temperature | |
| Storage Humidity | |
| Physical | |
| Certifications | FCC, IC, as per Manufacturer |
| IP Rating | |
| Material of Construction | |
| Dimensions | 4.9 x 4.9 x 2.3" / 124.0 x 124.0 x 57.2 mm |
| Weight | 0.43 lb / 195 g |
