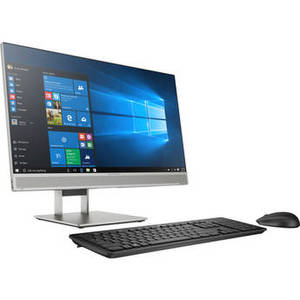

23.8" EliteOne 800 G5 Multi-Touch All-in-One Desktop Computer
![]() |
From HP
Availability: Item is currently available.
40,487 Points
See more in Electronics
See more in Desktop Computers
See more in Computers
Product Description
Create a modern workspace with the 23.8" EliteOne 800 G5 Multi-Touch All-in-One Desktop Computer from HP, which delivers performance, hardware-enforced security, and a display with a micro-edge bezel. This system is powered by a 3.0 GHz Intel Core i7-9700 Eight-Core processor and 8GB of 2666 MHz DDR4 RAM that allows you to efficiently multitask as well as quickly access frequently used files and programs. If you require more processing power, the CPU can be adjusted to 4.7 GHz using Intel's Turbo Boost technology and the memory can be upgraded to 64GB by using a 32GB memory module in each of the 260-pin SO-DIMM slots.
The 23.8" IPS anti-glare display features a Full HD 1920 x 1080 native resolution, LED-backlighting, a 16:9 aspect ratio, 250 cd/m2 brightness, a 1000:1 contrast ratio, a 60 Hz refresh rate, a 14 ms response time, 72% NTSC color gamut coverage, and wide viewing angles of 178°. The display also features capacitive multi-touch functionality, allowing you to utilize the touch gestures and functions in Windows 10 Pro to further improve accessibility and productivity. The integrated Intel UHD Graphics 630 chipset delivers a sharp, clear picture. You'll also be able to output video to two external displays using the system's DisplayPort 1.2 and HDMI 2.0a outputs.
For storage, it has a 256GB NVMe PCIe M.2 SSD for all your data and media content, and this storage can be expanded using one additional M.2 2280 slot and one 2.5" drive bay. You can connect external storage options, optical drives, keyboards, mice, and more via its one 10 Gb/s USB 3.1 Gen 2 Type-C port, which supports charging up to 5V / 3A, four 10 Gb/s USB 3.1 Gen 2 Type-A ports, one of which supports charging up to 5V / 1.5A, and two 5 Gb/s USB 3.1 Gen 1 Type-A ports. You can also take advantage of the UHS-II SDXC card reader to expand your storage as well as transfer data between your mobile devices.
Connect to the internet via dual-band Wi-Fi 6 (802.11ax) or the Gigabit Ethernet jack for a more stable and reliable wired connection. Other integrated features include Bluetooth 5.0 for pairing compatible wireless peripherals, a 1080p webcam, dual-array digital microphones, 2W stereo speakers, a 3.5mm headphone jack, and a 3.5mm universal audio jack with CTIA headset support that can be re-tasked as a headphone output, line output, microphone input, or line input. When not in use, the webcam retracts into the system to help safeguard privacy.
This EliteOne 800 G5 mounts to an included recline stand. Once set up, it can be adjusted to fit your viewing preferences, with a vertical height adjustment of 7", a tilt angle of -5 to 65°, and a swivel of 360°. Also included is a USB keyboard, a USB mouse, and a power cord. Protection is provided by a limited 3-year warranty.
The 23.8" IPS anti-glare display features a Full HD 1920 x 1080 native resolution, LED-backlighting, a 16:9 aspect ratio, 250 cd/m2 brightness, a 1000:1 contrast ratio, a 60 Hz refresh rate, a 14 ms response time, 72% NTSC color gamut coverage, and wide viewing angles of 178°. The display also features capacitive multi-touch functionality, allowing you to utilize the touch gestures and functions in Windows 10 Pro to further improve accessibility and productivity. The integrated Intel UHD Graphics 630 chipset delivers a sharp, clear picture. You'll also be able to output video to two external displays using the system's DisplayPort 1.2 and HDMI 2.0a outputs.
For storage, it has a 256GB NVMe PCIe M.2 SSD for all your data and media content, and this storage can be expanded using one additional M.2 2280 slot and one 2.5" drive bay. You can connect external storage options, optical drives, keyboards, mice, and more via its one 10 Gb/s USB 3.1 Gen 2 Type-C port, which supports charging up to 5V / 3A, four 10 Gb/s USB 3.1 Gen 2 Type-A ports, one of which supports charging up to 5V / 1.5A, and two 5 Gb/s USB 3.1 Gen 1 Type-A ports. You can also take advantage of the UHS-II SDXC card reader to expand your storage as well as transfer data between your mobile devices.
Connect to the internet via dual-band Wi-Fi 6 (802.11ax) or the Gigabit Ethernet jack for a more stable and reliable wired connection. Other integrated features include Bluetooth 5.0 for pairing compatible wireless peripherals, a 1080p webcam, dual-array digital microphones, 2W stereo speakers, a 3.5mm headphone jack, and a 3.5mm universal audio jack with CTIA headset support that can be re-tasked as a headphone output, line output, microphone input, or line input. When not in use, the webcam retracts into the system to help safeguard privacy.
This EliteOne 800 G5 mounts to an included recline stand. Once set up, it can be adjusted to fit your viewing preferences, with a vertical height adjustment of 7", a tilt angle of -5 to 65°, and a swivel of 360°. Also included is a USB keyboard, a USB mouse, and a power cord. Protection is provided by a limited 3-year warranty.
Operating System | Windows 10 Pro (64-Bit) |
Performance | |
CPU Architecture | x86 |
Chipset | |
CPU Socket | |
CPU | 3 GHz Intel Core i7-9700 8-Core |
CPU | |
Maximum Boost Speed | 4.7 GHz |
L3 Cache | 9 MB |
Memory Type | 2666 MHz DDR4 |
Total Installed Memory | 8 GB |
Memory Configuration | 1 x 8 GB (User-Replaceable) |
Maximum Memory Capacity | 64 GB |
Memory Slot Type | 260-Pin SO-DIMM |
Memory Slots | 2 (1 Available) |
Buffered Memory | |
ECC Memory | |
Intel Optane Memory | 16 GB (M.2) |
Graphics Type | Integrated |
GPU | Intel UHD Graphics 630 |
Display | |
Panel Type | IPS |
Size | 23.8" |
Aspect Ratio | 16:9 |
Resolution | 1920 x 1080 |
Touchscreen | Yes |
Finish | Matte |
Maximum Brightness | 215 cd/m2 |
Color Gamut | 72% NTSC |
Refresh Rate | |
Contrast Ratio | 1000:1 |
Response Time | |
Adaptive Sync Technology | |
Viewing Angle (H x V) | 178 x 178° |
Storage and Expansion | |
Total Drive Bays | |
2.5" Slots | 1 x Height Unspecified (Available) |
SSD Slots | 1 x M.2 2280 PCIe x4 (Available) 1 x M.2 2280 PCIe x4 (In Use) |
Total Installed Capacity | 256 GB |
Solid State Storage | 1 x 256 GB M.2 NVMe PCIe |
Hard Disk Storage | |
Hybrid Storage | |
PCI Expansion | |
PCI Expansion in MPX Bays | |
Expansion Slots | |
Optical Drive | None |
I/O | |
Ports | 4 x USB Type-A (USB 3.1 / USB 3.2 Gen 2) 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
USB Type-C Ports | 1 x USB 3.1 / USB 3.2 Gen 2 |
Display | 1 x DisplayPort 1.2 1 x HDMI 2.0a |
Audio | 1 x 1/8" / 3.5 mm Line Output 1 x 1/8" / 3.5 mm Headphone Output 1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output |
Built-In Speakers | 2 x 2.5 W |
Built-In Microphones | 2 |
Media Card Slots | 1 x SD/SDHC/SDXC (UHS-II [312 MB/s]) |
Communications | |
Ethernet | 1 x RJ45 (Gigabit) |
Wi-Fi | Wi-Fi 6 (802.11ax); Dual-Band (2.4 & 5 GHz) |
MU-MIMO Support | 2 x 2 |
Bluetooth | 5.0 |
SIM Card Size | |
GSM 3G/3.5G | |
4G LTE | |
GPS | |
NFC | None |
Webcam | User-Facing: 480p World-Facing: 1080p |
Battery Chemistry | |
Capacity | |
Maximum Runtime | |
Keyboard & Mouse | |
Keyboard | 99-Key USB Full-Size Keyboard with Number Pad |
Pointing Device | USB Mouse |
General | |
Security | Infineon TPM Software Professional Package |
Power Supply | 180 W |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.5 A |
Operating Temperature | 50 to 95°F / 10 to 35°C |
Operating Humidity | 10 to 90% |
Mounting-Hole Pattern | 100 x 100 mm |
Dimensions | 21.24 x 18.43 x 8.67" / 539.5 x 468.12 x 220.22 mm |
Weight | 22.93 lb / 10.4 kg |
Warranty Length | Limited 3-Year Warranty |
