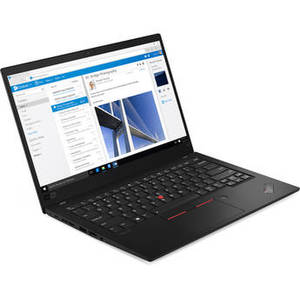

14" ThinkPad X1 Carbon Touchscreen Laptop (Gen 7, Black Paint)
![]() |
From Lenovo
Availability: Item is currently available.
46,503 Points
See more in Electronics
See more in Laptops
See more in Computers
Product Description
Upgraded with a 1.6 GHz Intel Core i5-8365U quad-core processor, the seventh-generation Black Paint 14" ThinkPad X1 Carbon Laptop from Lenovo is designed for on-the-go professionals who need a secure and portable system. For smooth multitasking, the ThinkPad X1 Carbon is equipped with 16GB of LPDDR3 RAM that operates at 2133 MHz. To keep your files safe and secure, this laptop has a 256GB M.2 PCIe NVMe Opal2 solid-state drive.
With a 14" Full HD 1920 x 1080 IPS (In-Plane Switching) multi-touch panel that's powered by an integrated Intel UHD Graphics 620 chipset, the ThinkPad X1 Carbon outputs crisp and clear content with vivid colors and wide viewing angles. If you wish to extend or duplicate your ThinkPad's display, you can do so with its HDMI 1.4 port. Additional connectivity can be accessed through the ThinkPad's dual 40 Gb/s Thunderbolt 3 ports over USB 3.1 Gen 2 Type-C, which support DisplayPort and 10 Gb/s data transfer. There's also dual USB 3.1 Gen 1 Type-A ports, one of which supports always on charging.
Other integrated features include a 720p webcam, a Dolby Atmos speaker system, four 360° far-field microphones, a 3.5mm combo audio jack, a backlit keyboard, Wi-Fi 5 (802.11ac), and Bluetooth 5.0. To ensure your data is protected, the X1 Carbon is equipped with a fingerprint reader, TPM (Trusted Platform Module), and a Kensington lock slot. Keep the ThinkPad X1 Carbon charged with the included 65W USB Type-C power adapter. The operating system installed is Windows 10 Pro.
With a 14" Full HD 1920 x 1080 IPS (In-Plane Switching) multi-touch panel that's powered by an integrated Intel UHD Graphics 620 chipset, the ThinkPad X1 Carbon outputs crisp and clear content with vivid colors and wide viewing angles. If you wish to extend or duplicate your ThinkPad's display, you can do so with its HDMI 1.4 port. Additional connectivity can be accessed through the ThinkPad's dual 40 Gb/s Thunderbolt 3 ports over USB 3.1 Gen 2 Type-C, which support DisplayPort and 10 Gb/s data transfer. There's also dual USB 3.1 Gen 1 Type-A ports, one of which supports always on charging.
Other integrated features include a 720p webcam, a Dolby Atmos speaker system, four 360° far-field microphones, a 3.5mm combo audio jack, a backlit keyboard, Wi-Fi 5 (802.11ac), and Bluetooth 5.0. To ensure your data is protected, the X1 Carbon is equipped with a fingerprint reader, TPM (Trusted Platform Module), and a Kensington lock slot. Keep the ThinkPad X1 Carbon charged with the included 65W USB Type-C power adapter. The operating system installed is Windows 10 Pro.
Operating System | Windows 10 Pro (64-Bit) |
Performance | |
CPU Architecture | x86 |
Chipset | |
CPU Socket | |
CPU | 1.6 GHz Intel Core i5-8365U Quad-Core |
CPU | |
Maximum Boost Speed | 4.1 GHz |
L3 Cache | 6 MB |
Memory Type | 2133 MHz LPDDR3 |
Total Installed Memory | 16 GB |
Memory Configuration | 1 x 16 GB (Onboard) |
Maximum Memory Capacity | |
Memory Slot Type | |
Memory Slots | |
Buffered Memory | No |
ECC Memory | No |
Intel Optane Memory | |
Graphics Type | Integrated |
GPU | Intel UHD Graphics 620 |
Display | |
Panel Type | IPS |
Size | 14" |
Aspect Ratio | 16:9 |
Resolution | 1920 x 1080 |
Touchscreen | Yes |
Finish | Matte |
Maximum Brightness | 300 cd/m2 |
Color Gamut | |
Refresh Rate | |
Contrast Ratio | |
Response Time | |
Adaptive Sync Technology | None |
Viewing Angle (H x V) | |
Storage and Expansion | |
Total Drive Bays | |
2.5" Slots | |
SSD Slots | |
Total Installed Capacity | 256 GB |
Solid State Storage | 1 x 256 GB M.2 NVMe PCIe |
Hard Disk Storage | |
Hybrid Storage | |
PCI Expansion | |
PCI Expansion in MPX Bays | |
Expansion Slots | |
Optical Drive | None |
I/O | |
Ports | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) |
USB Type-C Ports | 2 x Thunderbolt 3 (Supports DisplayPort) |
Display | 1 x HDMI 1.4 |
Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone Input/Output |
Built-In Speakers | Yes |
Built-In Microphones | Yes |
Media Card Slots | None |
Communications | |
Ethernet | 1 x RJ45 (Gigabit) |
Wi-Fi | Wi-Fi 5 (802.11ac) |
MU-MIMO Support | 2 x 2 |
Bluetooth | 5.0 |
SIM Card Size | |
GSM 3G/3.5G | |
4G LTE | |
GPS | None |
NFC | No |
Webcam | User-Facing: 720p |
Battery | |
Battery Chemistry | |
Capacity | 51 Wh |
Maximum Runtime | 18.3 Hours |
Keyboard & Mouse | |
Keyboard | Notebook Keyboard with Backlight |
Pointing Device | TouchPad, Pointing Stick |
General | |
Security | Kensington Lock Slot, Infineon TPM Software Professional Package, Fingerprint Reader |
Power Supply | 65 W |
AC Input Power | |
Operating Temperature | |
Operating Humidity | |
Mounting-Hole Pattern | |
Dimensions | 12.72 x 8.54 x 0.59" / 323 x 217 x 15 mm |
Weight | 2.4 lb / 1.09 kg |
Warranty Length | Limited 3-Year Warranty |
