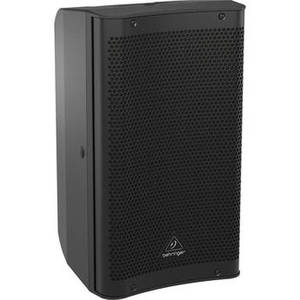

DR110DSP Active 1000W 10" Speaker System with DSP and Mixer
 |
From Behringer
Availability: Item is currently available.
4,693 Points
See more in Electronics
See more in Audio & Video
Product Description
The Behringer DR110DSP is an active 2-way 1000W 10" portable speaker system with DSP and an integrated two-channel mixer well suited for live sound reinforcement and playback systems. The ultracompact and lightweight enclosure features a 35mm pole cup and can also be deployed on its side and used as a floor monitor.
A Class-AB amplifier powers the 1.35" compression driver, while an efficient Class-D amplifier powers the 10" long-excursion woofer which combine for a frequency response of 55 Hz to 19 kHz with a maximum SPL of 132 dB. The mixer features two independent combo XLR-1/4" mic/line inputs and a 3.5mm TRS auxiliary input for integrated audio from a portable music player. The DR110DSP also features built-in Bluetooth for wireless audio streaming from compatible devices such as phones, tablets, and computers.
The integrated DSP offers a 3-band EQ, four factory sound presets (Music, Live, Speech, and DJ/Club), and a low-cut filter with selections for 80, 100, 120, or 150 Hz. An additional XLR output is provided for daisy-chaining to other speaker systems. The Behringer DR110DSP ships with a standard IEC power cord.
A Class-AB amplifier powers the 1.35" compression driver, while an efficient Class-D amplifier powers the 10" long-excursion woofer which combine for a frequency response of 55 Hz to 19 kHz with a maximum SPL of 132 dB. The mixer features two independent combo XLR-1/4" mic/line inputs and a 3.5mm TRS auxiliary input for integrated audio from a portable music player. The DR110DSP also features built-in Bluetooth for wireless audio streaming from compatible devices such as phones, tablets, and computers.
The integrated DSP offers a 3-band EQ, four factory sound presets (Music, Live, Speech, and DJ/Club), and a low-cut filter with selections for 80, 100, 120, or 150 Hz. An additional XLR output is provided for daisy-chaining to other speaker systems. The Behringer DR110DSP ships with a standard IEC power cord.
| Portable PA System | |
| Speaker Configuration | 1 x 2-Way Loudspeaker |
| Number of Input Channels | 3 (2 x Mono, 1 x Stereo) |
| Amplifier Power Rating | Total: 1 x 1000 W |
| Amplifier Class | HF: Class-AB LF: Class-D |
| Impedance | |
| Speakers | |
| Enclosure Type | Speaker: Bass-Reflex |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 1 x 1.35" / 34.29 mm Horn-Loaded Compression Driver |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | 1 x 10" / 254 mm Woofer |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | Active |
| Input Pad | |
| EQ | 1 x LF Shelf: ±12 dB at 80 Hz 1 x MF Notch/Peak: ±12 dB at 2.5 kHz 1 x HF Shelf: ±12 dB at 12 kHz 4 x Presets (Factory) |
| Semi-Parametric EQ | |
| Effects | |
| DSP | |
| Filters | 1 x High-Pass: 80 Hz 100 Hz 120 Hz 150 Hz |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | 55 Hz to 19 kHz ±3 dB |
| Frequency Range | |
| Maximum SPL | 132 dB |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | 90° H x 60° V |
| Coverage Angle | |
| Input Sensitivity | -26 dBu |
| Gain Range | |
| Max Input Level | 0 dBu |
| I/O Impedance | XLR Mic Input: 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) 1/4" TRS Line Input: 20 Kilohms (Balanced) 10 Kilohms (Unbalanced) XLR Line Output: 200 Ohms (Balanced) 100 Kilohms (Unbalanced) |
| SNR | |
| THD | |
| Dynamic Range | |
| Protections | AC Fuse, Open Circuit, Output Limiter, Short Circuit, Thermal |
| Connectivity | |
| Audio I/O | 2 x Combo XLR-1/4" TRS Female Balanced/Unbalanced Mic/Line Input 1 x 1/8" / 3.5 mm TRS Female Unbalanced Line/Aux Input |
| Phantom Power | |
| USB | |
| Media Playback | |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | Bluetooth |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Bluetooth | 4.2 |
| Bluetooth Profiles | A2DP 1.2 |
| Pairing | |
| Bluetooth Channel | 79 |
| Frequency | 2402 to 2480 MHz |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | 10 dBm |
| Bluetooth Range | 49.2' / 15 m |
| Power | |
| Battery Type | |
| Approximate Battery Life | |
| Battery Charging Time | |
| Internal Battery Capacity | |
| Battery Cycle Count | |
| AC Input Power | Factory Selectable: 110 VAC, 60 Hz (T 3.15 A H 250 V) |
| Power Adapter Output | |
| Current Consumption | |
| Power Consumption | 75 W (1/8 Power) |
| DC Input Power | |
| AC Power Connector | 1 x IEC Input |
| Physical | |
| Cable Length | |
| Transport Options | 1 x Handle (Top) 1 x Handle (Side) |
| Mounting | 1.38" / 35 mm |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | Fan |
| Construction Material | |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Certifications | |
| Dimensions | 20.51 x 11.89 x 12.28" / 521 x 302 x 312 mm |
| Weight | 29.3 lb / 13.3 kg |
| Warranty Length | Limited 3-Year Warranty |
