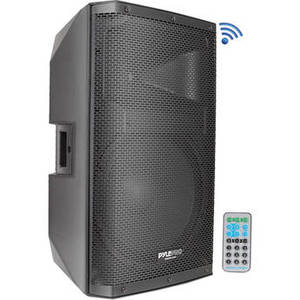

PADH15BTA Active 1400W 15" Stage and Studio PA Speaker System with Bluetooth
 |
From Pyle Pro
Availability: Item is currently available.
5,301 Points
See more in Electronics
See more in Audio & Video
Product Description
The PADH15BTA Active 1400W 15" Stage and Studio PA Speaker System with Bluetooth from Pyle Pro is a molded PA cabinet that features MP3, USB, and SD card playback. The 2-way speaker—15" woofer, 1.75" tweeter—can be used for DJs, live instruments, rehearsals, public speaking events, and more.
The system's integrated mixer provides two channels with 3-pin XLR for mics and 1/4" line-level inputs with independent volume and effects controls. It also includes a stereo RCA line input and output jacks, Bluetooth wireless music streaming ability for smartphones, iPads and tablets, MP3 digital audio file support, and USB flash and SD memory card readers. The master section has a 5-band graphic EQ, digital echo-effects, DSP processing, and master volume control.
With a rugged and heavy-duty molded cabinet housing for durability and an integrated 1-3/8" stand mount, the PADH15BTA Active 1400W 15" Stage and Studio PA Speaker System offers everything you need to get up and running for any performance application.
| Portable PA System | |
| Speaker Configuration | 1 x 2-Way Loudspeaker |
| Number of Input Channels | 2 (2 x Mono, 1 x Stereo) |
| Amplifier Power Rating | Total: 1 x 1400 W Peak (at 4 Ohms) |
| Amplifier Class | |
| Impedance | Speaker: 4 Ohms |
| Speakers | |
| Enclosure Type | Speaker: Sealed |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 1 x 1.75" / 4.45 cm Horn-Loaded Titanium Horn |
| HF Voice Coil | |
| MF Driver | Yes |
| MF Voice Coil | |
| LF Driver | 15" / 38.1 cm Paper Woofer |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | LF Driver: 60 oz / 1.7 kg |
| Speaker Sensitivity | 98 dB (Typical) |
| Signal Processing | |
| Crossover | |
| Input Pad | |
| EQ | Yes |
| Semi-Parametric EQ | |
| Effects | 1 x Echo (Type Unspecified) |
| DSP | |
| Filters | |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | LF Driver: 46 Hz to 2.5 kHz Speaker: 46 Hz to 20 kHz ±10 dB |
| Frequency Range | |
| Maximum SPL | |
| Max Coverage Distance | |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | |
| Max Input Level | |
| I/O Impedance | |
| SNR | ≥85 dB |
| THD | 10% |
| Dynamic Range | |
| Protections | |
| Connectivity | |
| Audio I/O | 2 x 1/4" TS Female Unbalanced Line Input 2 x XLR 3-Pin Female Balanced Mic Input 1 x Stereo RCA Female Unbalanced Line Input/Output |
| Phantom Power | Yes |
| USB | 1 x USB Type-A (Media Playback) |
| Media Playback | 1 x SD |
| Media & File Formats Supported | Playback: MP3 |
| Network I/O | |
| Wireless Connectivity | Bluetooth |
| Wireless Transmission | |
| Max Wireless Range | |
| Number of RF Channels | |
| RF Frequency Band | |
| RF Bandwidth | |
| Form Factor | |
| RF Output Power | |
| Transmitter I/O | |
| Max Number of Simultaneous Transmitters | |
| Diversity | |
| Antenna | |
| Squelch | |
| Approximate RF Sensitivity | |
| Deviation | |
| Modulation | |
| RF Channel Crosstalk | |
| Spurious | |
| Bluetooth | |
| Bluetooth | 4.0 |
| Bluetooth Profiles | |
| Pairing | Manual |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | 65' / 19.8 m |
| Power | |
| Battery Type | |
| Approximate Battery Life | |
| Battery Charging Time | |
| Internal Battery Capacity | |
| Battery Cycle Count | |
| AC Input Power | 110 to 220 VAC, 50 / 60 Hz |
| Power Adapter Output | |
| Current Consumption | |
| Power Consumption | |
| DC Input Power | |
| AC Power Connector | 1 x IEC |
| Physical | |
| Cable Length | |
| Transport Options | 1 x Handle (Top) 1 x Handle (Each Side) |
| Mounting | 1 x 1.5" / 38 mm Pole Socket (Bottom) |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Certifications | |
| Dimensions | 16.54 x 15.04 x 26.97" / 42.01 x 38.2 x 68.5 cm |
| Weight | 56.5 lb / 25.63 kg |
| Warranty Length | Limited 1-Year Warranty |
