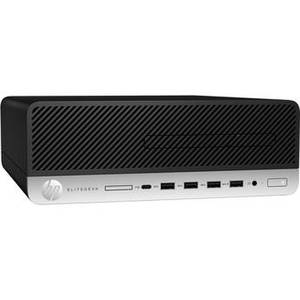

EliteDesk 705 G5 Small Form Factor Desktop Computer
![]() |
From HP
Availability: Item is currently available.
17,700 Points
See more in Electronics
See more in Desktop Computers
See more in Computers
Product Description
Built for enterprise environments, the EliteDesk 705 G5 Small Form Factor Desktop Computer from HP delivers value with powerful performance, expandability, manageability, and security for the modern workplace. The system is powered by a 3.4 GHz AMD Athlon PRO 300GE Dual-Core. The 8GB of 2666 MHz DDR4 RAM also helps the computer to run multiple applications simultaneously, as well as access frequently used files and programs. The current memory configuration is one 8GB module with an additional three slots available for memory upgrades, making for a total of four 288-pin DIMM slots. With all four slots in use, this system supports 128GB of RAM, or 32GB per slot.
For storage of your files, the EliteDesk 705 G5 is equipped with a 256GB NVMe PCIe M.2 SSD, and the internal storage can be expanded with one additional M.2 2280 slot and one 3.5" SATA bay, the latter of which can hold two 2.5" drives using an adapter. If you want to connect with external storage drives or other peripherals, there is one USB 3.1 Gen 2 Type-C charging port that delivers 15W (5V / 3A) of power, eight USB 3.1 Gen 1 Type-A ports (four front, four rear), and two USB 2.0 Type-A ports (rear). The integrated AMD Radeon Vega 11 chipset delivers a sharp, clear picture while allowing for a wide range of monitors to be used via its three DisplayPort 1.2 video outputs. Whether you are listening to music, watching a movie, or playing a game, the Conexant CX20632 codec outputs high-definition audio and delivers higher fidelity than standard audio controllers.
The EliteDesk 705 G5 Small Form Factor Desktop Computer includes an HP USB Business Slim keyboard, an HP USB optical mouse, and a 6' power cord. The installed operating system is Windows 10 Pro (64-bit) and also included is Windows 10 Pro (64-bit) recovery media, which is located on both the system's internal storage and HP's OS download site.
B&H Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Each HP EliteDesk includes a 3/3/3 warranty - 3-years limited warranty for parts, 3-years limited warranty for labor, and 3-years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.
For storage of your files, the EliteDesk 705 G5 is equipped with a 256GB NVMe PCIe M.2 SSD, and the internal storage can be expanded with one additional M.2 2280 slot and one 3.5" SATA bay, the latter of which can hold two 2.5" drives using an adapter. If you want to connect with external storage drives or other peripherals, there is one USB 3.1 Gen 2 Type-C charging port that delivers 15W (5V / 3A) of power, eight USB 3.1 Gen 1 Type-A ports (four front, four rear), and two USB 2.0 Type-A ports (rear). The integrated AMD Radeon Vega 11 chipset delivers a sharp, clear picture while allowing for a wide range of monitors to be used via its three DisplayPort 1.2 video outputs. Whether you are listening to music, watching a movie, or playing a game, the Conexant CX20632 codec outputs high-definition audio and delivers higher fidelity than standard audio controllers.
The EliteDesk 705 G5 Small Form Factor Desktop Computer includes an HP USB Business Slim keyboard, an HP USB optical mouse, and a 6' power cord. The installed operating system is Windows 10 Pro (64-bit) and also included is Windows 10 Pro (64-bit) recovery media, which is located on both the system's internal storage and HP's OS download site.
B&H Photo is an authorized HP reseller with professional in-house technicians available for upgrades & installations on these workstations and laptops. Each HP EliteDesk includes a 3/3/3 warranty - 3-years limited warranty for parts, 3-years limited warranty for labor, and 3-years of repairs performed at customer site for those parts not eligible for Customer Self Repair (CSR). For 24/7 customer service, please call 1-866-625-1175.
| Operating System | Windows 10 Pro (64-Bit) |
| Performance | |
| CPU Architecture | x86 |
| Chipset | AMD PRO 560 |
| CPU Socket | AM4 |
| CPU | 3.4 GHz AMD Athlon PRO 300GE Dual-Core |
| CPU | |
| Maximum Boost Speed | |
| L3 Cache | 4 MB |
| Memory Type | 2666 MHz DDR4 |
| Total Installed Memory | 8 GB |
| Memory Configuration | 1 x 8 GB (User-Replaceable) |
| Maximum Memory Capacity | 128 GB |
| Memory Slot Type | 288-Pin DIMM |
| Memory Slots | 4 (3 Available) |
| Buffered Memory | |
| ECC Memory | |
| Intel Optane Memory | |
| Graphics Type | Integrated |
| GPU | AMD Radeon Vega 3 |
| Panel Type | |
| Size | |
| Aspect Ratio | |
| Resolution | |
| Touchscreen | |
| Finish | |
| Maximum Brightness | |
| Color Gamut | |
| Refresh Rate | |
| Contrast Ratio | |
| Response Time | |
| Adaptive Sync Technology | |
| Viewing Angle (H x V) | |
| Storage and Expansion | |
| Total Drive Bays | 1 x 3.5" (Internal) |
| 2.5" Slots | |
| SSD Slots | 1 x M.2 2280 PCIe (In Use) 1 x M.2 2280 PCIe (Available) |
| Total Installed Capacity | 256 GB |
| Solid State Storage | 1 x 256 GB M.2 NVMe PCIe |
| Hard Disk Storage | |
| Hybrid Storage | |
| MPX Bays | |
| PCI Expansion | 1 x PCIe Gen 3 x8 1 x PCIe Gen 3 x1 1 x M.2 2230 (E-Key) x1 |
| PCI Expansion in MPX Bays | |
| Expansion Slots | |
| Optical Drive | SuperMulti DVD Burner with Dual Layer Support |
| I/O | |
| Ports | 8 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) 2 x USB Type-A (USB 2.0) |
| USB Type-C Ports | 1 x USB 3.1 / USB 3.2 Gen 2 (Supports 15 W Power Delivery) |
| Display | 3 x DisplayPort 1.2 |
| Audio | 1 x 1/8" / 3.5 mm Headphone/Microphone/Line Input/Output 1 x 1/8" / 3.5 mm Line Output 1 x 1/8" / 3.5 mm Line Input |
| Built-In Speakers | 1 x 2 W |
| Built-In Microphones | None |
| Media Card Slots | None |
| Communications | |
| Ethernet | 1 x RJ45 (Gigabit) |
| Wi-Fi | None |
| MU-MIMO Support | None |
| Bluetooth | None |
| SIM Card Size | |
| GSM 3G/3.5G | |
| 4G LTE | |
| GPS | |
| NFC | No |
| Webcam | |
| Battery Chemistry | |
| Capacity | |
| Maximum Runtime | |
| Keyboard & Mouse | |
| Keyboard | USB Full-Size Keyboard with Number Pad |
| Pointing Device | USB Mouse |
| General | |
| Security | Kensington Lock Slot, Infineon TPM Software Professional Package |
| Power Supply | 180 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 2.3 A |
| Operating Temperature | 50 to 95°F / 10 to 35°C |
| Operating Humidity | 10 to 90% |
| Mounting-Hole Pattern | |
| Dimensions | 11.7 x 10.6 x 3.7" / 297.18 x 269.24 x 93.98 mm |
| Weight | 12.96 lb / 5.88 kg |
| Warranty Length | Limited 3-Year Warranty |
