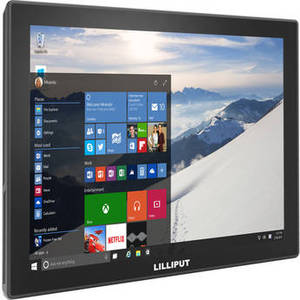

FA1210/C 12.1" Class XGA IPS LCD Monitor
 |
From Lilliput
Availability: Item is currently available.
6,187 Points
See more in Electronics
See more in Accessories
See more in Computers
Product Description
Add a temperature-resistant display to your system with the Lilliput FA1210/C 12.1" Class XGA IPS LCD Monitor. It has a native resolution of XGA 1024 x 768 with support for signals up to 4K at 30 fps. With a brightness rating of 800 cd/m², a contrast ratio of 900:1, and viewing angles up to 170°, colors should appear clear in most installation settings. The monitor is equipped with HDMI, VGA, and 1/8" A/V inputs, an 1/8" headphone output, and two built-in speakers.
| Display | |
| Screen Size (Diagonal) | 12.1" |
| Resolution | 1024 x 768 |
| Supported Display Resolutions | Maximum: 3840 x 2160 / 30 Hz |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | 8-Bit (16.7 Million Colors) |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 800 cd/m? |
| Viewing Angle (H x V) | 170 x 170° |
| Screen Area | |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 900:1 |
| Dynamic Contrast Ratio | |
| Response Time | 25 ms |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | Edge LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI 1.4 – Audio, Video (Bottom) 1 x 15-Pin VGA – Video (Bottom) 1 x 1/8" / 3.5 mm – Audio, Video (Bottom) |
| Output Ports | 1 x 1/8" / 3.5 mm – Headphone (Bottom) |
| USB Ports | 1 x USB (Version Unspecified) Type-A (Bottom) 1 x USB (Version Unspecified) Mini-B - Service (Bottom) |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Audio | |
| Built-In Speakers | Yes, 2 |
| Speaker Configuration | 2-Channel |
| Processing | |
| Operating System | |
| Processor | |
| Storage | |
| RAM | |
| Supported File Systems | |
| GPU | |
| Chipset | |
| Slot | |
| Operating System Support | |
| Built-In Mic | |
| NFC | |
| Integrated Camera | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Picture in Picture (PIP) | |
| Supported Languages | |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Operational: 13.0 W |
| DC Input Power | 12 to 24 VDC |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | -4 to 158°F / -20 to 70°C |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Operating Shock | |
| Operating Vibration | |
| Certifications | |
| Physical | |
| Wall Mounting | 75 x 75mm |
| Mounting Cutout Dimensions | |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IK Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 8.8 x 11.2 x 1.3" / 224.1 x 284.4 x 33.4 mm |
| Weight | 2.80 lb / 1.27 kg |
| Warranty Length | Limited 1-Year Warranty |
