Product Description

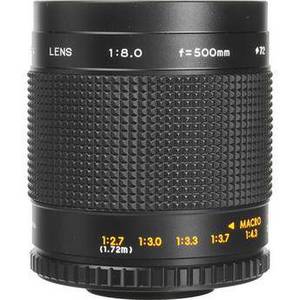

When combined with the T-mount to fit your camera system, this mirror lens mounts to camera and works on both "full frame" cameras as well as the "APS-C" style digital SLR cameras. T-Mounts are available for all the digital SLR systems, as well as for C-mount systems. However, in every case the fixed f/8 aperture is not communicated to the camera body. As such, you can use the lens in "M" manual exposure mode or "A" aperture-priority mode only.
Despite this lens' long 500mm focal length, it has a compact 3 x 3.5" size and weighs under 1 pound, making it a bit easier to handle than normal 500mm refractor lenses (it should be used with a tripod or monopod in any case). It also has a much different rendering of out of focus areas than a normal lens; highlights will be doughnut-shaped rings with more saturation and contrast on the edge of the ring than on the center.
This lens is an ideal candidate for astrophotography use when mounted to a Vixen GP2 Photo Guider (or other motorized equatorial telescope mount).
| Focal Length | 500mm |
| Maximum Aperture | f/8 |
| Minimum Aperture | f/8 |
| Pinhole Diameter | |
| Lens Mount | T-Mount |
| Lens Mount | |
| Lens Mount | |
| Format Compatibility | Full-Frame |
| Angle of View | 5? |
| Area of Coverage | |
| Tilt-Shift | |
| Minimum Focus Distance | 5.7' / 1.74 m |
| Maximum Magnification | |
| Macro Reproduction Ratio | |
| Optical Design | 7 Elements in 6 Groups |
| Diaphragm Blades | |
| Focus Type | Manual Focus |
| Image Stabilization | None |
| Leaf Shutter | |
| Tripod Collar | |
| Filter Size | 30.5 mm (Rear) |
| Dimensions (? x L) | 3.03 x 3.44" / 7.7 x 8.74 cm |
| Weight | 11.64 oz / 330 g |
