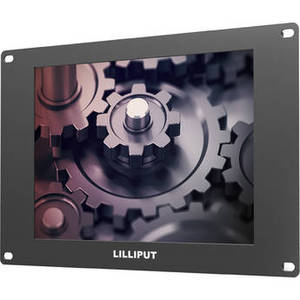

10.4" Touchscreen Monitor with Metal Frame
 |
From Lilliput
Availability: Item is currently available.
5,786 Points
See more in Electronics
See more in Accessories
See more in Computers
Product Description
Add touchscreen control to your system with the LILLIPUT 10.4" Touchscreen Monitor. It uses a 5-wire resistive touch panel and connects to the system via USB. Its native resolution is 800 x 600 with a brightness rating of 250 cd/m², and contrast ratio of 400:1. The IPS panel allows for viewing angles up to 140° horizontally and 110° vertically. The monitor is equipped with HDMI, VGA, DVI, YPbPr, S-video, and two RCA A/V inputs to support a variety of source types. It features a metal housing with open frame or VESA 75 x 75mm mounting options.
| Display | |
| Screen Size (Diagonal) | 10.4" |
| Resolution | 800 x 600 |
| Supported Display Resolutions | |
| Panel Type | IPS-Type LCD |
| Bit Depth / Color Support | |
| Color Gamut | |
| HDR Compatibility | |
| Brightness | 250 cd/m? |
| Viewing Angle (H x V) | 140 x 110° |
| Screen Area | 8.31 x 6.23" / 211.2 x 158.4 mm |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 400:1 |
| Dynamic Contrast Ratio | |
| Response Time | 15 ms |
| Refresh Rate | |
| Horizontal Frequency | |
| Vertical Frequency | |
| Dot Pitch | 0.088 x 0.264 mm |
| Pixels Per Inch (ppi) | |
| Backlighting Technology | LED |
| Pixel Clock Frequency | |
| Connectivity | |
| Input Ports | 1 x HDMI Audio, Video 1 x DVI-I Video 1 x 15-Pin VGA Video 1 x RCA Component Video 1 x S-Video Video |
| USB Ports | 1 x USB (Version Unspecified) |
| Number of OPS/Expansion Slots | |
| Display Orientation | |
| Maximum Multiple Display Configuration | |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Resistive |
| Multi-Touch Points | |
| Surface Treatment | |
| Hardness Rating | 3H |
| Haze Level | |
| Audio | |
| Built-In Speakers | Yes, 1 W |
| Speaker Configuration | |
| Processing | |
| External Speaker Output | |
| Operating System | |
| Processor | |
| L2 Cache | |
| Storage | |
| RAM | |
| Supported File Systems | |
| GPU | |
| Chipset | |
| Slot | |
| Operating System Support | |
| Convenience | |
| Built-In Mic | |
| NFC | |
| Integrated Camera | |
| Supported Video File Types | |
| Supported Audio File Types | |
| Supported Photo File Types | |
| Supported Document File Types | |
| Picture in Picture (PIP) | |
| Supported Languages | English Traditional Chinese |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| DC Input Power | 12 VDC |
| Power Adapter Type | |
| Apparent Power | |
| Environmental | |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -4 to 158°F / -20 to 70°C |
| Operating Humidity | 90% |
| Storage Humidity | |
| Operating Altitude | |
| Storage Altitude | |
| Certifications | |
| Physical | |
| Wall Mounting | 75 x 75mm |
| Material of Construction | |
| Audible Noise | |
| IP Rating | |
| IR Sensor | |
| Glass Thickness | |
| Bezel Thickness | |
| Duty Cycle | |
| Dimensions | 11.3 x 7.9 x 1.5" / 28.7 x 20.3 x 3.9 cm |
| Warranty Length |
