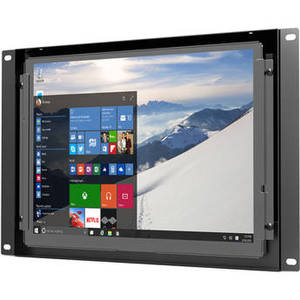

10.4" Touchscreen Monitor with Open Frame
 |
From Lilliput
Availability: Item is currently available.
5,786 Points
See more in Electronics
See more in Accessories
See more in Computers
Product Description
Add touchscreen control to your system with the LILLIPUT 10.4" Touchscreen Monitor. It uses a 5-wire resistive touch panel and connects to your system via USB. Its native resolution is 800 x 600 with a brightness rating of 250 cd/m² and contrast ratio of 400:1. The IPS panel allows for viewing angles up to 140° horizontally and 110° vertically. The monitor is equipped with HDMI, VGA, DVI, YPbPr, and S-video inputs to support a variety of source types. It features a metal housing with open frame or 75 x 75 or 100 x 100mm VESA mounting options.
| Display | |
| Screen Size (Diagonal) | 10.4" |
| Resolution | 800 x 600 |
| Panel Type | IPS-Type LCD |
| Brightness | 250 cd/m? |
| Viewing Angle (H x V) | 140 x 110° |
| Screen Area | 8.31 x 6.24" / 211.2 x 158.4 mm |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 400:1 |
| Response Time | 20 ms |
| Dot Pitch | 0.088 x 0.264 mm |
| Backlighting Technology | Direct LED |
| Connectivity | |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI – Audio, Video (Rear) 1 x DVI – Video (Rear) 1 x 15-Pin VGA – Video (Rear) 1 x S-Video – Video (Rear) 2 x 1/8" / 3.5 mm – Video (Rear) 1 x 1/8" / 3.5 mm – Audio (Rear) |
| Output Ports | 1 x 1/8" / 3.5 mm – Audio (Rear) |
| USB Ports | 1 x USB (Version Unspecified) Type-A (Rear) |
| Ethernet Ports | None |
| Control Ports | None |
| Number of OPS/Expansion Slots | |
| General | |
| TV Tuner | No |
| 3D | |
| Ambient Light Sensor | |
| Lighting Lifespan | |
| Surface | |
| Touchscreen Technology | Resistive |
| Multi-Touch Points | |
| Surface Treatment | |
| Hardness Rating | 3H |
| Haze Level | |
| Audio | |
| Built-In Speakers | Yes, 1 x 1 W |
| Speaker Configuration | 1-Channel |
| Operating System | |
| Processor | |
| L2 Cache | |
| Storage | |
| RAM | |
| Supported File Systems | |
| GPU | |
| Chipset | |
| Slot | |
| Operating System Support | |
| Convenience | |
| Built-In Mic | |
| NFC | |
| Integrated Camera | |
| Supported Languages | English Simplified Chinese |
| Swivel Adjustment | |
| Tilt Adjustment | |
| Electrical | |
| Power Consumption | Operational: < 8.0 W |
| DC Input Power | 12 VDC at 650 mA |
| Power Adapter Type | External |
| Apparent Power | |
| Environmental | |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 0 to 90% |
| Physical | |
| Wall Mounting | 75 x 75mm |
| Material of Construction | Metal |
| Audible Noise | |
| Dimensions | 11.3 x 8.0 x 1.5" / 286.8 x 202.8 x 38.8 mm |
| Weight | 3.75 lb / 1.7 kg |
| Warranty Length |
