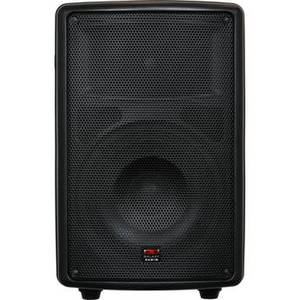

Product Description
Featuring a 150W amplifier with an 8" woofer, 1" horn, two XLR/1/4" combo inputs with their own volume control, one RCA, and an AUX 1/8" input, the speaker has a 3-band EQ with master volume control and a built-in media player with Bluetooth. You can play audio from an SD card, USB drive, or from a Bluetooth enabled device. The speaker is equipped with an integrated handle for easy transportation and has a 1-3/8" speaker-pole mount with locking mechanism for a secure mounting.
With a voice priority button, it reduces the volume of the media player, Bluetooth, and line level input when it receives a transmission from a wireless or a wired handheld microphone, either plugged into the unit or as an installed wireless system. This feature can be turned on or off. Finally, the TQ8 is an "all-in-one" portable PA that offers audio quality and reliable performance. A remote control is also included for the MP3 player.
| Portable PA System | |
| Speaker Configuration | |
| Number of Input Channels | |
| Amplifier Power Rating | 150 W |
| Amplifier Class | |
| Impedance | |
| Speakers | |
| Enclosure Type | |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 1" / 25.4 mm |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | 8" / 203 mm |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | |
| Input Pad | |
| EQ | HF Shelf MF Notch/Peak LF Shelf |
| Semi-Parametric EQ | |
| Effects | |
| DSP | |
| Filters | |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | 70 Hz to 18 kHz ±3 dB |
| Frequency Range | |
| Maximum SPL | 105 dB |
| Max Coverage Distance | 200' / 60 m |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | |
| Max Input Level | |
| I/O Impedance | |
| SNR | |
| THD | |
| Dynamic Range | |
| Protections | |
| Connectivity | |
| Audio I/O | 2 x Combo XLR-1/4" Mic/Line Input 1 x 2RCA Aux Input 1/8" / 3.5 mm TRS Aux Input |
| Phantom Power | |
| USB | 1 x USB Type-A |
| Media Playback | SD |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | Bluetooth |
| Wireless | |
| RF Frequency Band | N2:517.55 MHz N4:521.85 MHz |
| Antenna | Built-In |
| Bluetooth | |
| Bluetooth | |
| Bluetooth Profiles | |
| Pairing | |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | 100' / 30 m |
| Power | |
| Battery Type | 2 x Rechargeable 12 V Lead-Acid |
| Approximate Battery Life | 24 Hours |
| Battery Charging Time | 8 Hours |
| Internal Battery Capacity | 2.8 Ah |
| Battery Cycle Count | |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Output | 32 VDC at 2 A |
| Current Consumption | |
| Power Consumption | |
| DC Input Power | |
| AC Power Connector | |
| Physical | |
| Cable Length | |
| Transport Options | |
| Mounting | 1.38" / 35.05 mm Pole Socket |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | |
| IP Rating | |
| Operating Temperature | |
| Storage Temperature | |
| Operating Humidity | |
| Certifications | |
| Dimensions | 10.5 x 11.5 x 17.25" / 267 x 292 x 438 mm |
| Weight | 18.9 lb / 8.6 kg (with Batteries) |
| Warranty Length |
