Product Description

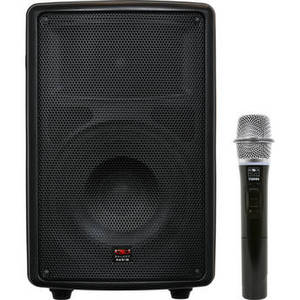

Featuring a 150W amplifier with an 8" woofer, 1" horn, two XLR/1/4" combo inputs, each with their own volume control, and one RCA or 1/8" AUX input, the speaker has a 3-band EQ with master volume control and a built-in media player with Bluetooth. You can play audio from an SD card, USB drive, or from a Bluetooth enabled device. The TQ8 has a built-in integrated handle for easy transportation and a 1-3/8" speaker-pole mount is provided for secure mounting.
With the voice priority button, it can reduce the volume of the media player, Bluetooth, and line-level input when it receives a signal from a wireless or a wired handheld microphone, which either can be plugged into the unit or as an installed wireless system. This feature can be turned on or off. Finally, the TQ8 is an "all-in-one" portable PA that offers quality audio and reliable performance. A remote control is also included for the MP3 player.
| Portable PA System | |
| Speaker Configuration | |
| Number of Input Channels | |
| Amplifier Power Rating | 150 W |
| Amplifier Class | |
| Impedance | |
| Speakers | |
| Enclosure Type | |
| Full-Range Driver | |
| Full-Range Driver (Oval) | |
| HF Driver | 1" / 25.4 mm Horn |
| HF Voice Coil | |
| MF Driver | |
| MF Voice Coil | |
| LF Driver | 8" / 203 mm Woofer |
| LF Voice Coil | |
| Subwoofer Driver | |
| Subwoofer Voice Coil | |
| Magnet | |
| Speaker Sensitivity | |
| Signal Processing | |
| Crossover | |
| Input Pad | |
| EQ | HF Shelf MF Notch/Peak LF Shelf |
| Semi-Parametric EQ | |
| Effects | |
| DSP | |
| Filters | |
| Dynamic Processing | |
| Form Factor | |
| Capsule | |
| Polar Pattern | |
| Output Connector | |
| Operating Voltage | |
| Microphone Sensitivity | |
| Muting | |
| Performance | |
| Frequency Response | System: 70 Hz to 18 kHz ±3 dB Transmitter: 100 Hz to 12 kHz ±10 dB |
| Frequency Range | Receiver: 80 Hz to 16 kHz ±3 dB |
| Maximum SPL | Speaker: 105 dB Handheld Microphone: 120 dB |
| Max Coverage Distance | 200' / 60 m |
| Max Coverage Area | |
| Coverage Angle | |
| Coverage Angle | |
| Input Sensitivity | |
| Gain Range | |
| Max Input Level | |
| I/O Impedance | Receiver Output: 3 Kilohms Handheld Transmitter Input: 5 Kilohms |
| SNR | Receiver: >85 dBA |
| THD | <0.5% |
| Dynamic Range | Receiver: >83 dB |
| Protections | |
| Connectivity | |
| Audio I/O | 2 x Combo XLR-1/4" Line/Mic Input 1 x 2RCA Input 1/8" / 3.5 mm TRS Aux Input |
| Phantom Power | |
| USB | 1 x USB Type-A |
| Media Playback | SD |
| Media & File Formats Supported | |
| Network I/O | |
| Wireless Connectivity | Bluetooth |
| Wireless | |
| Max Wireless Range | RF Wireless: 160' / 50 m (Line of Sight) |
| Number of RF Channels | 1 |
| RF Frequency Band | N2:517.55 MHz N4:521.85 MHz |
| RF Output Power | 10 mW |
| Antenna | Built-In |
| Approximate RF Sensitivity | -95 dBm |
| Spurious | Handheld Transmitter: >45 dB Spurious Rejection |
| Bluetooth | |
| Bluetooth | |
| Bluetooth Profiles | |
| Pairing | |
| Bluetooth Channel | |
| Frequency | |
| Bluetooth Power Class | |
| Bluetooth Input Gain | |
| Transmitter Power | |
| Bluetooth Range | 100' / 30 m |
| Power | |
| Battery Type | System: 2 x Rechargeable 12 V Lead-Acid Handheld Transmitter: 2 x AA |
| Approximate Battery Life | System: 24 Hours Handheld Transmitter: 8 Hours (Alkaline) |
| Battery Charging Time | 8 Hours |
| Internal Battery Capacity | 2.8 Ah |
| Battery Cycle Count | |
| AC Input Power | Universal: 100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Output | 32 VDC at 2 A |
| Current Consumption | |
| Power Consumption | |
| DC Input Power | Receiver: 12 VDC at 0.5 A |
| AC Power Connector | |
| Physical | |
| Cable Length | |
| Transport Options | |
| Mounting | 1.38 x " / 35 mmPole Socket |
| Stand Height | |
| Stand Load Capacity | |
| Cooling | |
| Construction Material | |
| IP Rating | |
| Operating Temperature | 14 to 122°F / -10 to 50°C |
| Storage Temperature | |
| Operating Humidity | |
| Certifications | |
| Dimensions | System: 10.5 x 11.5 x 17.25" / 267 x 292 x 438 mm Handheld Transmitter: 6.65 x 2.16" / 245 x 54.75 mm |
| Weight | System: 18.9 lb / 8.6 kg (with Batteries) Handheld Transmitter: 9.3 oz / 263 g (without Batteries) |
| Warranty Length |
